UPS System, DIN Rail/Chassis, , In:120/230V AC

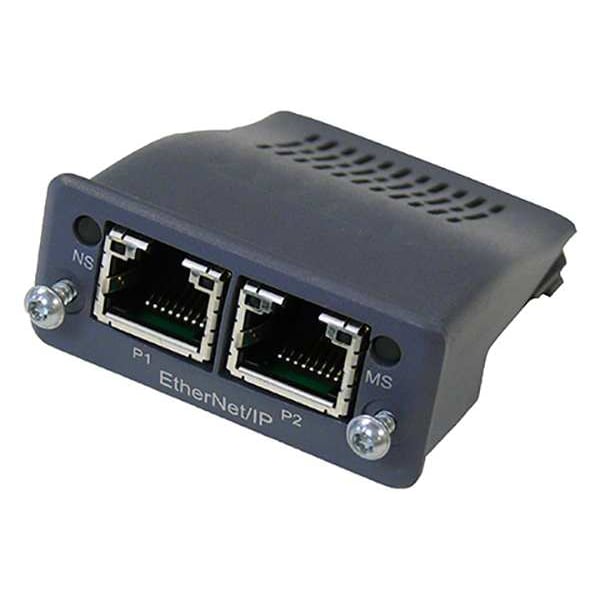

| Item | Ethernet IP COMM Card |
|---|---|
| For Use With | Comm Card, SolaHD SDU AC - A Series |
| Mounting | DIN Rail, Chassis |
| Input Voltage | 120/230V AC |
| Width | 30 mm |
| Includes | Cable, Software |
| Operating Temperature | 0°C to +50°C |
| Output Voltage Range | 120 or 230 Vac (Simulated Sinewave) |
| Input voltage range | 120 V (+10%, -20%) or 230 V (+/- 15%) |
| Nominal Voltage Range | 120 or 230 Vac |
| Hertz | 50 or 60 Hz |
| Number of Phases | Single Phase |
| Audible Noise | < 40dBA (beyond 1 meter from surface) |
| Typical Back-up Time (minutes, full load) | SDU 500A(-5): 4; SDU 850A(-5): 2 |
| Capacity (VA/W) | SDU 500A(-5): 500/300; SDU 850A(-5): 850/510 |
| Compatible with Series | SDU AC - A |
| Features | Cold Start Capability, Compact, Remote Turn-On and Shut-Off, Temperature Resistant |
| Compatible with Brand | SolaHD |
| Package Quantity | 1 |
