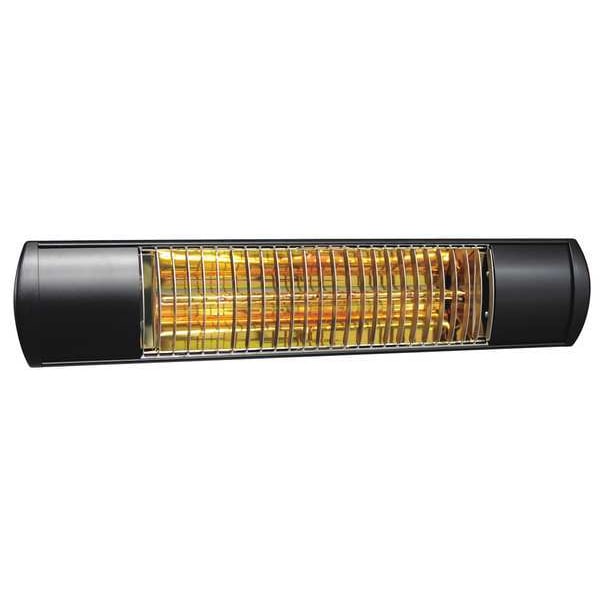

Electric Infrared Heater, 1 Phase, Aluminum, 5120 BtuH, 208/240V AC 1500 W
| Indoor/Outdoor Usage | Indoor, Outdoor |
|---|---|
| Electric Heater Item | Electric Infrared Heater |
| Heater Mounting Type | Wall |
| Includes | Bracket, Waterproof |
| Watts | 1,500 |
| Item | Electric Infrared Heater |
| BtuH Output | 5,120 |
| Heater Voltage | 240VAC |
| Electric Heater Phase | 1 |
| Number of Lamps | 1 |
| Length | 22 in |
| Beam Pattern | 45 deg |
| Cord Length | 6 ft |
| Heat Pattern Coverage @ Floor (10 Ft.) | 9 x 10 |
| Infrared Electromagnetic Wave Type | Short Wave |
| Watts Delivered/Sq.-Ft. 12 | 17 |
| Amps @ 1 Phase | 6.25 |
| Housing Material | Aluminum |
| Width | 6 in |
| Height | 5 in |
| Standards | CSA, UL 2021 C22.2 |
| Radiant Efficiency | 89 % |
| Element Type | Quartz Lamp |
| Finish | Black Epoxy Powder Coated |
| Cord Type | UL Outdoor Approved |
| Voltage | 208/240V AC |
| Phase | 1 |
| Heating Method | Radiant |
| Grille Depth | 1/2 in |
| Overall Dimensions - L x W x D | 22 in x 6 in x 5 in |
| Overall Length | 22 in |
| Electrical Connection | Hardwired |
| Amperage | 12.5 A |
| Mobility | Stationary |
| Cord Construction | 16/3 |
| Overall Width | 6 in |
| Grille Width | 15 in |
| Frequency | 50/60Hz |
| Control Type | Digital or Mechanical |
| UL Cord Rating | SJTW |
| Housing Material, Housing Color | Aluminum, Black |
| Brightness | 78 lm |
| Grille Height | 4-1/2 in |
| For Use Outdoors | Indoor, Outdoor |
| Wattage Output | 1125W/1500W |
| Housing Color | Black |
| Heating Capacity | 5,120 BtuH |
| Voltage, Phase | 208/240V AC, 1-phase |
| Housing Finish | Powder Coated |
| Reflector Material | Polished Aluminum |
| Max. Operating Temp. | 122 Degrees F |
| Grille Material | Coated Steel, Galvanized |
| NEMA Plug Configuration | Hard wired |
| Overall Depth | 5 in |
| For Use Indoors/Outdoors | Indoor, Outdoor |
| Country of Origin (subject to change) | United Kingdom |
| Package Quantity | 1 |
