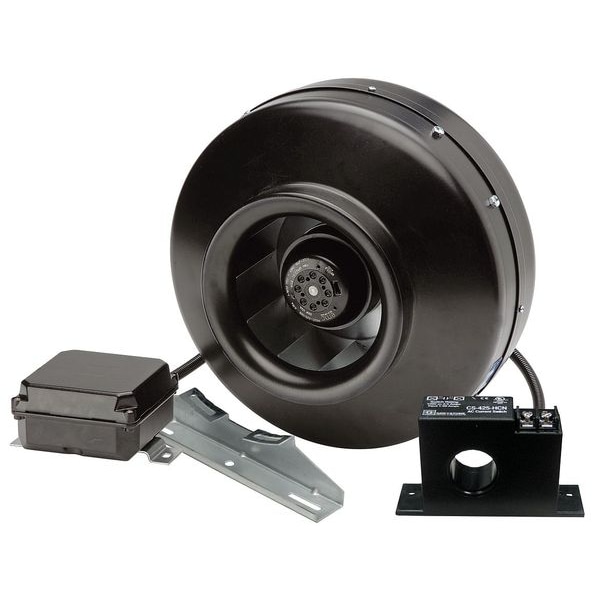

Dryer Booster Duct Fan, 115V, 9-1/2 Dia.
| Item | In-Line Duct Fan |
|---|---|
| Voltage | 115 V AC |
| Housing Dia. | 9-1/2 in |
| Housing Height | 7-5/8 in |
| Duct Dia. | 4 in |
| Max. Amps | 0.7 |
| Wheel Type | Backward Inclined |
| CFM @ 1.500-In. SP | 34 cfm |
| CFM @ 1.000-In. SP | 80 cfm |
| CFM @ 0.800-In. SP | 84 cfm |
| Hz | 60 Hz |
| Watts | 84 |
| CFM @ 0.000-In. SP | 153 cfm |
| CFM @ 0.200-In. SP | 130 cfm |
| CFM @ 0.400-In. SP | 114 cfm |
| CFM @ 0.600-In. SP | 97 cfm |
| Inlet Dia. | 4 in |
| Includes | Current Sensor, Mounting Bracket |
| Motor RPM | 2,880 RPM |
| Standards | Class F Insulation |
| Nameplate Voltage | 115 V AC |
| Speed Controllable | Yes |
| Number of Speeds | 1 |
| Application | Dryer |
| Duct Diameter | 4 in |
| Motor Speed | 2,880 rpm |
| Motor IP Rating | IP44 |
| Airflow @ 0.000 in SP | 153 cfm |
| Overall Height | 7-3/4 in |
| For Fan Type | Dryer Booster |
| Housing Material | Galvanized Steel |
| Power Consumption | 84 W |
| High-Efficiency Motor | No |
| Phase | 1 |
| Motor Output Power | 84 W |
| Overall Width | 7-3/4 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
