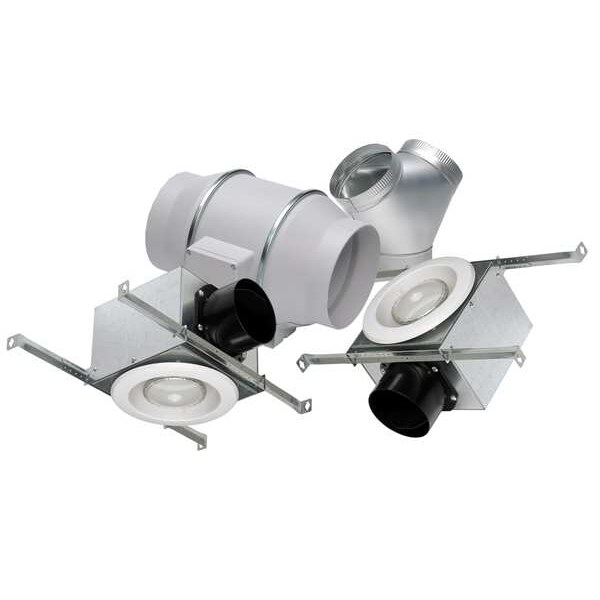

Duct Fan Exhaust Kit, 6 In. Dia.
| Item | In-Line Duct Fan |
|---|---|
| Housing Material | Plastic |
| Fits Duct Dia. | 6 in |
| Voltage | 120 V |
| Max. Amps | 0.542 |
| Max. Wattage | 65 |
| Number of Speeds | 1 |
| Housing Dia. | 7-7/8 in |
| Length | 7 7/8 in |
| Motor RPM | 2,289 |
| Max. Inlet Temp. | 104 Degrees F |
| Includes | (2) Halogen Light Grilles, Mounting Bracket |
| Hz | 60 |
| Width | 7 7/8 in |
| CFM @ 0.000-In. SP | 293/218 |
| CFM @ 0.750-In. SP | 131/24 cfm |
| CFM @ 0.400-In. SP | 222/119 cfm |
| CFM @ 1.000-In. SP | 35 cfm |
| Flange Width | 1 1/4 in |
| Bearing Type | Ball Bearing |
| CFM @ 0.450-In. SP | 215/112 cfm |
| Standards | AMCA, HVI, UL |
| CFM @ 0.375-In. SP | 227/128 cfm |
| CFM @ 0.125-In. SP | 273/193 cfm |
| CFM @ 0.100-In. SP | 281/202 |
| CFM @ 0.200-In. SP | 261/171 cfm |
| Phase | 1 |
| CFM @ 0.250-In. SP | 250/163 cfm |
| Inlet and Outlet Dia. | 6 in |
| CFM @ 0.600-In. SP | 165/70 cfm |
| Motor Enclosure | Totally Enclosed |
| Mounting Position | Horizontal or Vertical |
| CFM @ 0.500-In. SP | 206/105 cfm |
| Speed Control | Yes |
| CFM @ 0.800-In. SP | 110 cfm |
| Housing Finish | Off White |
| Height | 8 3/8 in |
| Housing Color | Off White |
| Mounting Orientation | Horizontal, Vertical |
| Maximum Inlet Air Temperature | 104 deg F |
| Overall Width | 7-7/8 in |
| For Fan Type | In-Line Duct Fan |
| High-Efficiency Motor | No |
| Overall Height | 8-3/8 in |
| Motor Output Power | 65 W |
| Motor IP Rating | IP44 |
| Airflow @ 0.000 in SP | 293 cfm |
| Duct Diameter | 6 in |
| Application | General Purpose |
| Motor Speed | 2,289 rpm |
| Speed Control Included | Yes |
| Overall Diameter | 7-7/8 in |
| Speed Controllable | Yes |
| Nameplate Voltage | 120V AC |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
