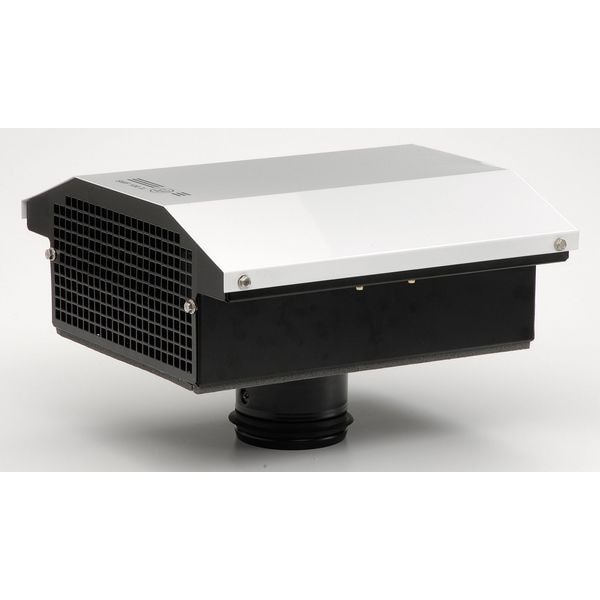

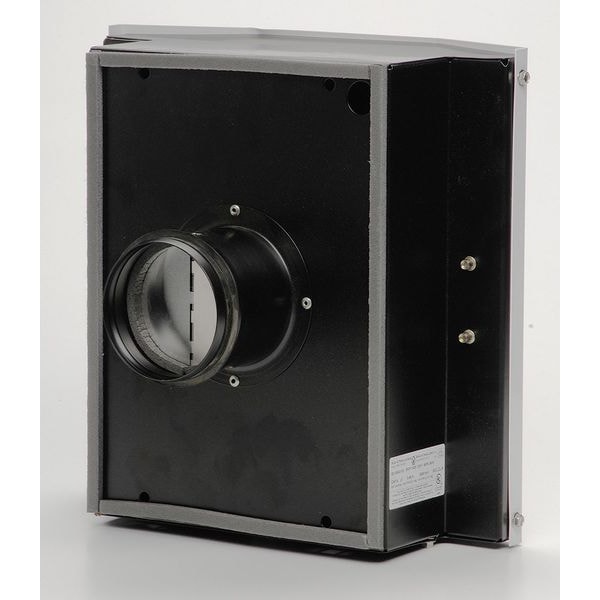

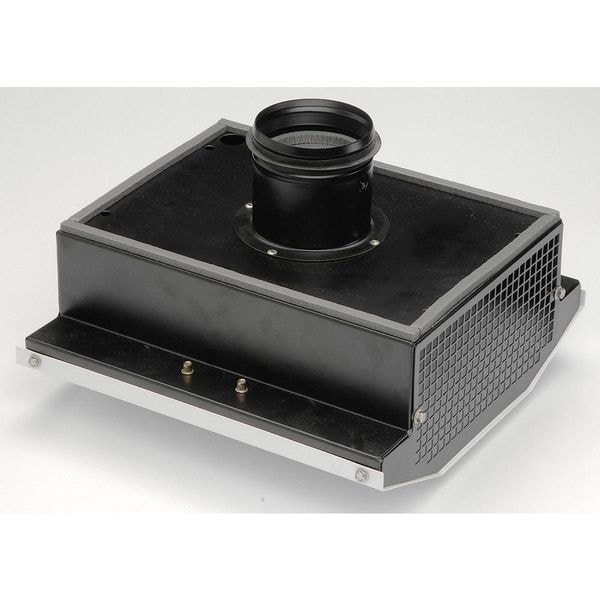

Exhaust Fan, Sidewall, 4 In, 109 CFM
| Exhaust/Supply Fan Item | Exhaust Fan |
|---|---|
| Type | Sidewall Mount |
| Fits Duct Dia. (In.) | 4 |
| CFM @ 0.100-In. SP | 109 |
| Fan Voltage | 115 V AC |
| Drive Package With Motor Included | No |
| Housing Height (In.) | 13-1/4 |
| Housing Width (In.) | 13-1/4 |
| Housing Depth (In.) | 5-7/16 |
| Housing Material | Steel |
| Item | Exhaust Fan |
| Housing Finish | Painted Enamel |
| Agency Compliance | UL, HVI, AMCA, NAHB Green Approved |
| CFM @ 0.200-In. SP | 98 |
| Phase | 1 |
| Mounting Location | Horizontal, Vertical |
| Includes | Backdraft Damper, Exhaust Grille |
| CFM @ 0.600-In. SP | 54 |
| Hz | 60 |
| CFM @ 0.800-In. SP | 40 |
| Max. Inlet Temp. (Deg. F) | 140 |
| Speed Control | Yes |
| Drive Package Included | No |
| CFM @ 0.400-In. SP | 76 |
| Vent Design | Ducted |
| Nameplate Voltage | 120 V AC |
| Blower Wheel Curve | Backward |
| Mounting Orientation | Horizontal, Vertical |
| Duct Shape | Round |
| Wattage | 57 W |
| Maximum Noise Level | 6.6 sones |
| Maximum Coverage Area | 200 sq ft |
| Exhaust Airflow @ 0.200 in SP | 92 cfm |
| Number of Speeds | 1 |
| Discharge Direction | Vertical |
| Sensor Type | None |
| Full Load Current | 0.52 A |
| Maximum Inlet Temperature | 140 deg F |
| Exhaust Airflow @ 0.800 in SP | 44 cfm |
| Motor Type | Permanent Split Capacitor |
| Profile Height Family | High |
| Overall Height | 13-1/4 in |
| Frequency | 60 Hz |
| Exhaust Airflow @ 0.250 in SP | 92 cfm |
| Exhaust Airflow @ 0.400 in SP | 78 cfm |
| Profile Width Family | Single-Wide |
| Maximum Ambient Operating Temperature | 140 deg F |
| Maximum Airflow | 119 cfm |
| Overall Depth | 9 in |
| Standards | cULus Listed, HVI Certified |
| Noise Level @ 0.100 in SP @ 5 ft | 6.4 sones |
| Motor Enclosure | Totally Enclosed |
| Overall Width | 13-1/4 in |
| Motor Speed | 2,200 rpm |
| Includes Grill | Yes |
| Duct Diameter | 4 in |
| Exhaust Airflow @ 0.600 in SP | 64 cfm |
| Exhaust Airflow @ 0.100 in SP | 106 cfm |
| Exhaust Airflow @ 0.000 in SP | 119 cfm |
| Voltage | 115 V |
| Country of Origin (subject to change) | Spain |
| Package Quantity | 1 |
