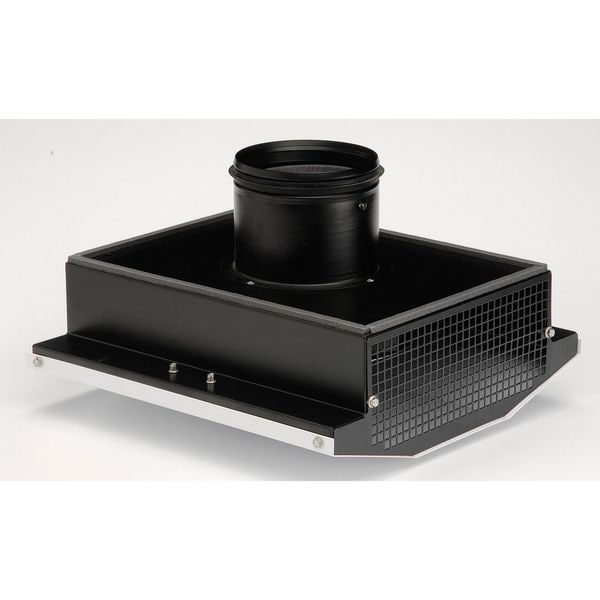

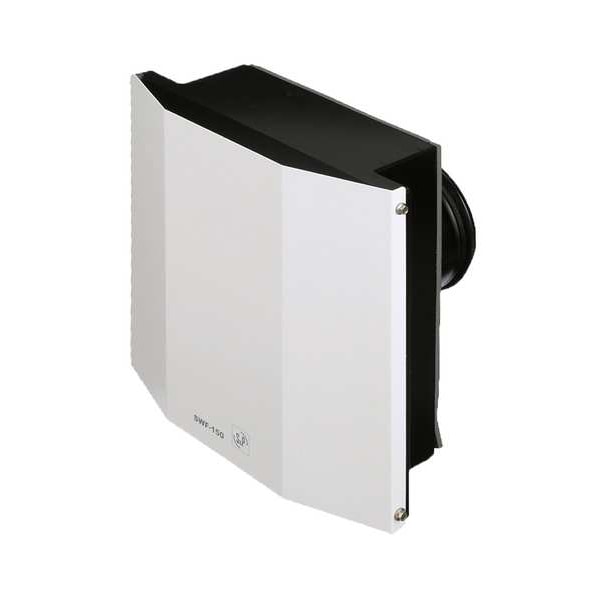

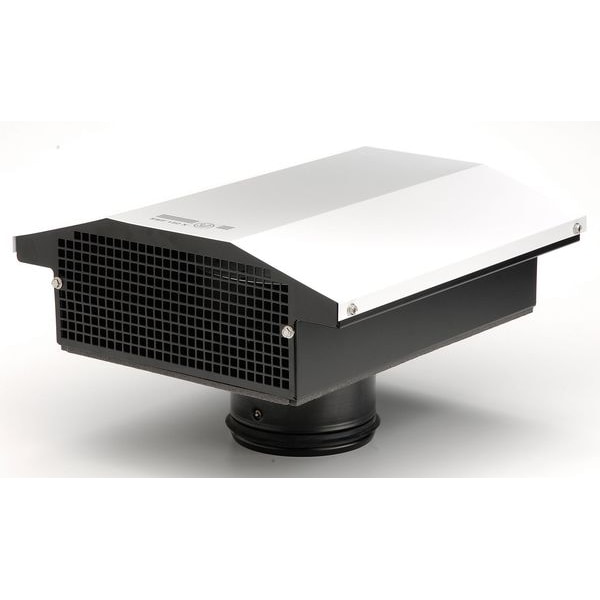

Exhaust Fan, Sidewall, 6 In, 340 CFM
| Exhaust/Supply Fan Item | Exhaust Fan |
|---|---|
| Type | Sidewall Mount |
| Fits Duct Dia. (In.) | 6 |
| CFM @ 0.100-In. SP | 340 |
| Fan Voltage | 115 V AC |
| Drive Package With Motor Included | No |
| Housing Height (In.) | 16-1/16 |
| Housing Width (In.) | 15-1/2 |
| Housing Depth (In.) | 5-5/8 |
| Housing Material | Steel |
| Agency Compliance | UL, HVI, AMCA, NAHB Green Approved |
| Max. Inlet Temp. (Deg. F) | 140 |
| Hz | 60 |
| CFM @ 0.800-In. SP | 210 |
| Item | Exhaust Fan |
| Phase | 1 |
| CFM @ 0.600-In. SP | 248 |

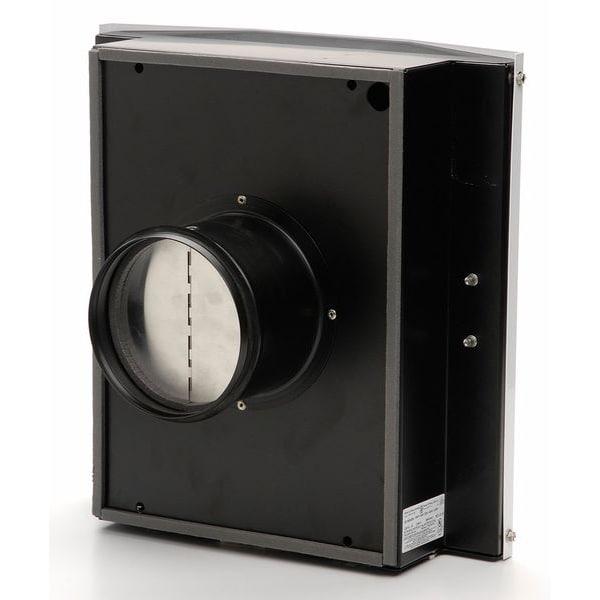

| Includes | Backdraft Damper, Exhaust Grille |
| CFM @ 0.400-In. SP | 279 |
| Drive Package Included | No |
| Mounting Location | Horizontal, Vertical |
| Housing Finish | Painted Enamel |
| Speed Control | Yes |
| CFM @ 0.200-In. SP | 321 |
| Overall Depth | 10 in |
| Sensor Type | None |
| Wattage | 115 W |
| Maximum Ambient Operating Temperature | 140 deg F |
| Nameplate Voltage | 120 V AC |
| Mounting Orientation | Horizontal, Vertical |
| Exhaust Airflow @ 0.100 in SP | 332 cfm |
| Exhaust Airflow @ 0.400 in SP | 287 cfm |
| Duct Shape | Round |
| Maximum Coverage Area | 600 sq ft |
| Includes Grill | Yes |
| Profile Width Family | Single-Wide |
| Noise Level @ 0.100 in SP @ 5 ft | 13.5 sones |
| Exhaust Airflow @ 0.250 in SP | 310 cfm |
| Discharge Direction | Vertical |
| Overall Width | 15-5/8 in |
| Profile Height Family | High |
| Full Load Current | 1 A |
| Exhaust Airflow @ 0.800 in SP | 230 cfm |
| Maximum Airflow | 354 cfm |
| Overall Height | 16-1/8 in |
| Duct Diameter | 6 in |
| Maximum Noise Level | 13.7 sones |
| Exhaust Airflow @ 0.000 in SP | 354 cfm |
| Blower Wheel Curve | Backward |
| Motor Speed | 2,800 rpm |
| Exhaust Airflow @ 0.200 in SP | 310 cfm |
| Vent Design | Ducted |
| Frequency | 60 Hz |
| Exhaust Airflow @ 0.600 in SP | 266 cfm |
| Motor Enclosure | Totally Enclosed |
| Standards | cULus Listed, HVI Certified |
| Number of Speeds | 1 |
| Maximum Inlet Temperature | 140 deg F |
| Motor Type | Permanent Split Capacitor |
| Voltage | 115 V |
| Country of Origin (subject to change) | Spain |
| Package Quantity | 1 |
