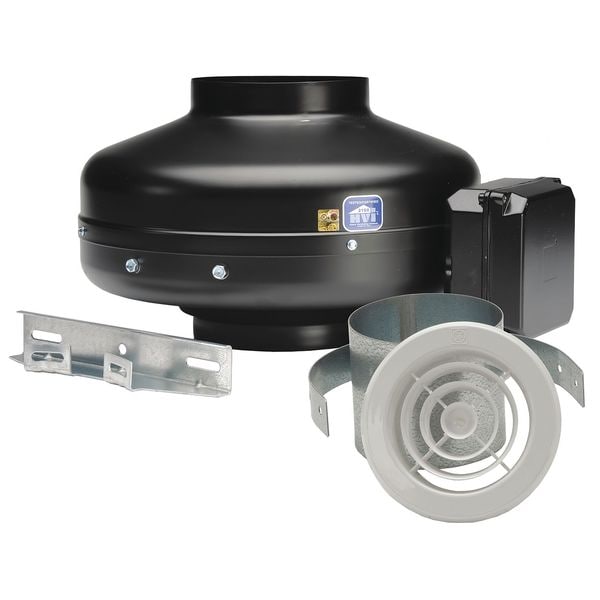

Inline Centrifugal Duct Fan, 4 In. Dia.
| Item | In-Line Duct Fan |
|---|---|
| Housing Material | Galvanized Steel |
| Fits Duct Dia. | 4 in |
| Voltage | 120 V |
| Max. Amps | 0.7 |
| Max. Wattage | 84 |
| Number of Speeds | 1 |
| Housing Dia. | 9-1/2 in |
| Length | 9 1/2 in |
| Motor RPM | 2,880 |
| CFM @ 0.450-In. SP | 113 cfm |
| Housing Finish | Black Epoxy Coating |
| CFM @ 0.125-In. SP | 142 cfm |
| CFM @ 0.500-In. SP | 111 cfm |
| CFM @ 0.800-In. SP | 92 cfm |
| Height | 7 5/8 in |
| CFM @ 0.600-In. SP | 106 cfm |
| CFM @ 0.400-In. SP | 116 cfm |
| CFM @ 1.500-In. SP | 34 cfm |
| CFM @ 0.100-In. SP | 146 |
| CFM @ 0.000-In. SP | 153 |
| CFM @ 1.200-In. SP | 61 cfm |
| Bearing Type | Ball Bearing |
| Includes | Intake Grill, Mounting Bracket |
| CFM @ 0.750-In. SP | 96 cfm |
| CFM @ 0.375-In. SP | 120 cfm |
| Inlet and Outlet Dia. | 4 in |
| Mounting Position | Horizontal or Vertical |
| Phase | 1 |
| Motor Enclosure | Totally Enclosed |
| Standards | AMCA, HVI, UL |
| CFM @ 1.000-In. SP | 80 cfm |
| Max. Inlet Temp. | 140 Degrees F |
| Flange Width | 1 in |
| Speed Control | Yes |
| CFM @ 0.250-In. SP | 130 cfm |
| Width | 9 1/2 in |
| Hz | 60 |
| CFM @ 0.200-In. SP | 136 cfm |
| Speed Control Included | Yes |
| Duct Diameter | 4 in |
| Application | General Purpose |
| High-Efficiency Motor | No |
| Mounting Orientation | Horizontal, Vertical |
| Overall Diameter | 7-3/4 in |
| Motor Speed | 2,880 rpm |
| Speed Controllable | Yes |
| Overall Width | 9-1/2 in |
| Nameplate Voltage | 120V AC |
| Motor Output Power | 84 W |
| Maximum Inlet Air Temperature | 140 deg F |
| Airflow @ 0.000 in SP | 153 cfm |
| Motor IP Rating | IP44 |
| Overall Height | 7-5/8 in |
| For Fan Type | Dryer Booster Kit |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
