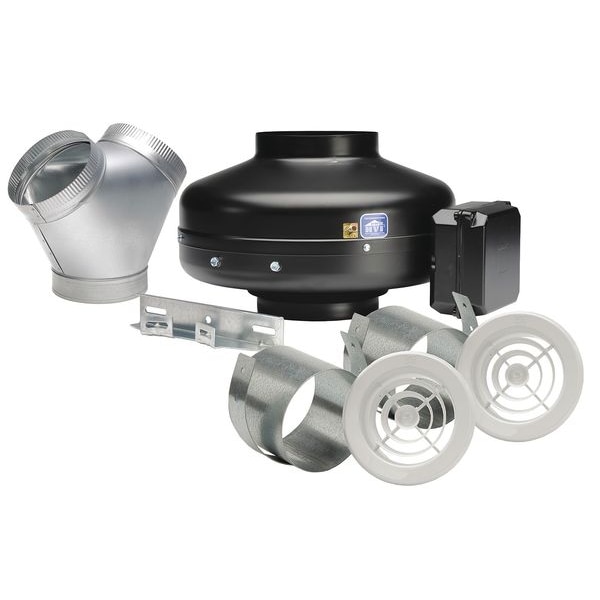

Inline Centrifugal Duct Fan, 8 In. Dia.
| Item | In-Line Duct Fan |
|---|---|
| Housing Material | Galvanized Steel |
| Fits Duct Dia. | 8 in |
| Voltage | 120 V |
| Max. Amps | 1.08 |
| Max. Wattage | 130 |
| Number of Speeds | 1 |
| Housing Dia. | 13-1/8 in |
| Length | 13 1/8 in |
| Motor RPM | 3,100 |
| Bearing Type | Ball Bearing |
| Width | 13 1/8 in |
| Standards | AMCA, HVI, UL |
| CFM @ 1.200-In. SP | 128 cfm |
| CFM @ 0.750-In. SP | 239 cfm |
| CFM @ 0.400-In. SP | 317 cfm |
| Flange Width | 1 in |
| Inlet and Outlet Dia. | 8 in |
| Hz | 60 |
| CFM @ 0.000-In. SP | 402 |
| CFM @ 0.800-In. SP | 222 cfm |
| CFM @ 0.100-In. SP | 383 |
| Includes | (1) Y Fitting, (2) Grilles, Mounting Bracket |
| CFM @ 0.200-In. SP | 361 cfm |
| CFM @ 1.500-In. SP | 85 cfm |
| Housing Finish | Black Epoxy Coating |
| CFM @ 0.375-In. SP | 327 cfm |
| CFM @ 0.250-In. SP | 350 cfm |
| Phase | 1 |
| CFM @ 0.125-In. SP | 375 cfm |
| Speed Control | Yes |
| CFM @ 0.600-In. SP | 243 cfm |
| Mounting Position | Horizontal or Vertical |
| CFM @ 1.000-In. SP | 179 cfm |
| Height | 8 1/2 in |
| CFM @ 0.450-In. SP | 307 cfm |
| Max. Inlet Temp. | 140 Degrees F |
| CFM @ 0.500-In. SP | 296 cfm |
| Motor Enclosure | Totally Enclosed |
| Green Certification or Other Recognition | ENERGY STAR |
| High-Efficiency Motor | No |
| Maximum Inlet Air Temperature | 140 deg F |
| Overall Height | 8-1/2 in |
| Nameplate Voltage | 120V AC |
| Application | General Purpose |
| Airflow @ 0.000 in SP | 402 cfm |
| Motor IP Rating | IP44 |
| Speed Control Included | Yes |
| Mounting Orientation | Horizontal, Vertical |
| Duct Diameter | 8 in |
| Motor Output Power | 130 W |
| Overall Diameter | 8-3/4 in |
| Motor Speed | 3,100 rpm |
| For Fan Type | Dryer Booster Kit |
| Overall Width | 13-1/8 in |
| Speed Controllable | Yes |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
