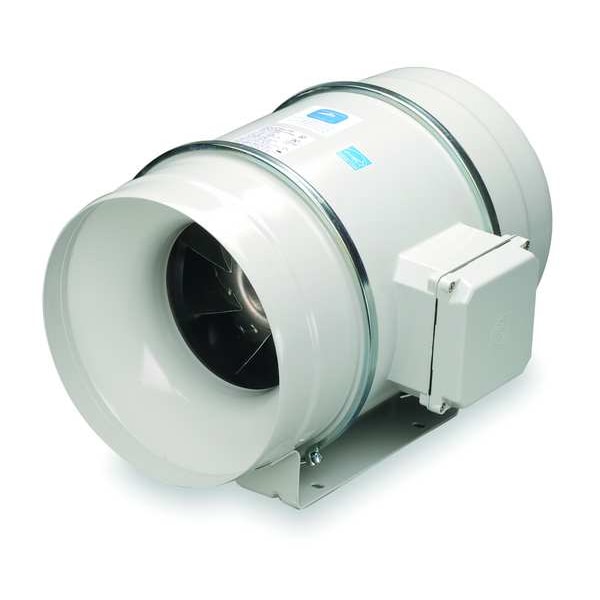

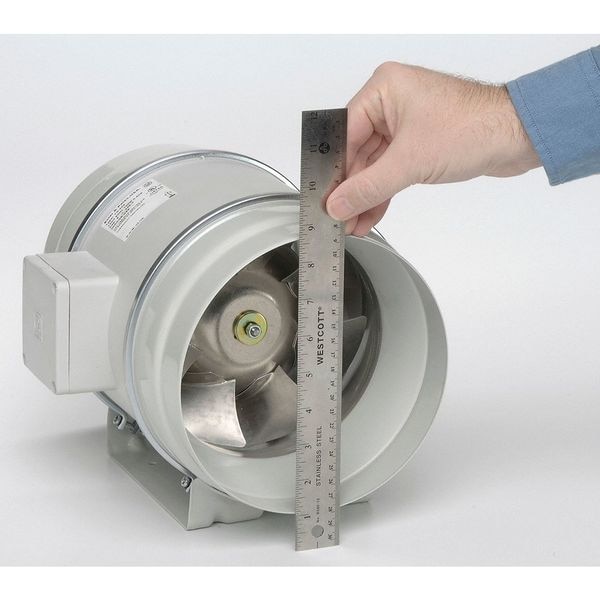

Mixed Flow Duct Fan, 10 In. Dia.
| Item | In-Line Duct Fan |
|---|---|
| Housing Material | Steel |
| Fits Duct Dia. | 10 in |
| Voltage | 120 V |
| Max. Amps | 2.2 |
| Max. Wattage | 241/162 |
| Number of Speeds | 2 |
| Housing Dia. | 10-3/4 in |
| Length | 11 1/2 in |
| Motor RPM | 3200/2400 |
| Mounting Position | Horizontal or Vertical |
| Standards | cULus, HVI |
| CFM @ 1.000-In. SP | 405/170 cfm |
| Hz | 60 |
| Housing Finish | Epoxy |
| CFM @ 0.500-In. SP | 606/295 cfm |
| CFM @ 0.125-In. SP | 715/475 cfm |
| Speed Control | Mfr. No. 48C172 |
| Max. Inlet Temp. | 140 Degrees F |
| Inlet and Outlet Dia. | 9-3/4 in |
| CFM @ 0.375-In. SP | 640/355 cfm |
| Motor Enclosure | Totally Enclosed |
| Phase | 1 |
| Motor HP | 0.3333 |
| Bearing Type | Ball Bearing |
| CFM @ 1.500-In. SP | 245/65 cfm |
| Flange Width | 1 1/2 in |
| CFM @ 0.750-In. SP | 520/218 cfm |
| CFM @ 0.000-In. SP | 754/541 |
| CFM @ 0.250-In. SP | 680/418 cfm |
| Includes | Mounting Bracket |
| Green Certification or Other Recognition | HVI Certified |
| For Fan Type | In-Line Duct Fan |
| Maximum Inlet Air Temperature | 140 deg F |
| Motor IP Rating | IP44 |
| Motor Output Power | 115 W |
| Speed Controllable | Yes |
| Overall Diameter | 10-3/4 in |
| High-Efficiency Motor | No |
| Overall Width | 7-5/8 in |
| Airflow @ 0.000 in SP | 754 cfm |
| Overall Height | 7-5/8 in |
| Application | General Purpose |
| Duct Diameter | 10 in |
| Nameplate Voltage | 120V AC |
| Mounting Orientation | Horizontal, Vertical |
| Motor Speed | 3,200 rpm |
| Country of Origin (subject to change) | Spain |
| Package Quantity | 1 |
