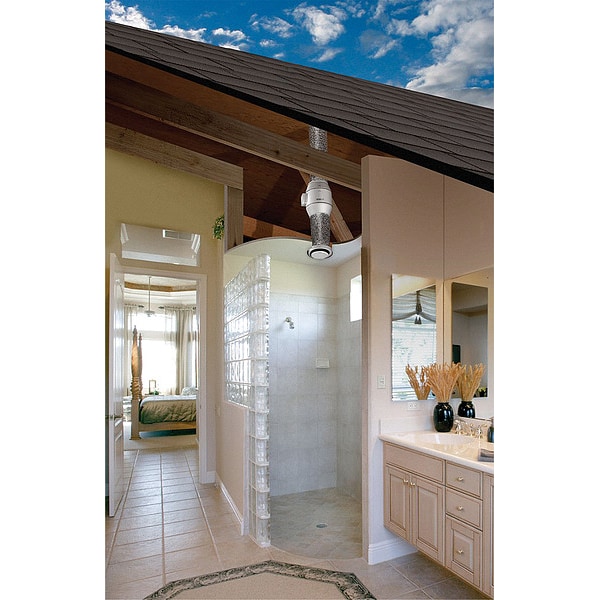

Mixed Flow Duct Fan, 6 In. Dia.
| Item | In-Line Duct Fan |
|---|---|
| Housing Material | Plastic |
| Fits Duct Dia. | 6 in |
| Voltage | 120 V |
| Max. Amps | 0.54 |
| Max. Wattage | 65/54 |
| Number of Speeds | 1 |
| Housing Dia. | 7-7/8 in |
| Length | 8 3/8 in |
| Motor RPM | 2300/1700 |
| Phase | 1 |
| Inlet and Outlet Dia. | 5-7/8 in |
| Standards | cULus |
| Hz | 60 |
| CFM @ 1.000-In. SP | 35 cfm |
| CFM @ 0.000-In. SP | 293/218 |
| Speed Control | Mfr. No. 48C172 |
| Includes | (1) Exterior Termination Louver, (1) Y Fitting, (2) Intake Grills, Mounting Bracket |
| CFM @ 0.750-In. SP | 131/24 cfm |
| Bearing Type | Ball Bearing |
| Motor Enclosure | Totally Enclosed |
| Flange Width | 1 1/8 in |
| Motor HP | 0.1 |
| CFM @ 0.125-In. SP | 273/193 cfm |
| Mounting Position | Horizontal or Vertical |
| CFM @ 0.250-In. SP | 227/128 cfm |
| CFM @ 0.375-In. SP | 227/128 cfm |
| CFM @ 0.500-In. SP | 206/105 cfm |
| Max. Inlet Temp. | 104 Degrees F |
| Motor Output Power | 65 W |
| Motor IP Rating | IP44 |
| Speed Controllable | Yes |
| Mounting Orientation | Horizontal, Vertical |
| High-Efficiency Motor | No |
| Nameplate Voltage | 120V AC |
| Airflow @ 0.000 in SP | 293 cfm |
| Application | General Purpose |
| Motor Speed | 2,300 rpm |
| For Fan Type | In-Line Duct Fan |
| Maximum Inlet Air Temperature | 104 deg F |
| Duct Diameter | 6 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
