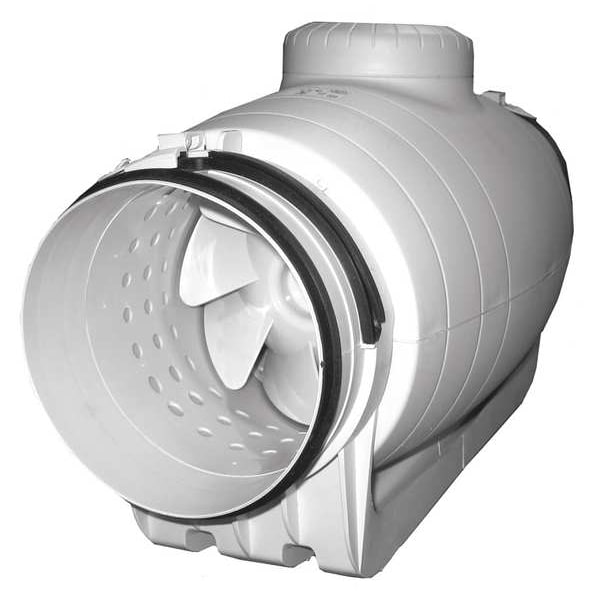

Mixed Flow Duct Fan, 8 In. Dia.
| Item | In-Line Duct Fan |
|---|---|
| Housing Material | Plastic |
| Fits Duct Dia. | 8 in |
| Voltage | 120 V |
| Max. Amps | 1.01 |
| Max. Wattage | 122 |
| Number of Speeds | 1 |
| Housing Dia. | 10-3/8 in |
| Length | 12 7/8 in |
| Motor RPM | 2200/2000 |
| Flange Width | 1 1/8 in |
| Max. Inlet Temp. | 140 Degrees F |
| CFM @ 0.375-In. SP | 443/306 cfm |
| CFM @ 0.125-In. SP | 503/367 cfm |
| Bearing Type | Ball Bearing |
| Mounting Position | Horizontal or Vertical |
| CFM @ 0.000-In. SP | 530/409 |
| Width | 22 3/8 in |
| CFM @ 0.750-In. SP | 349/183 cfm |
| CFM @ 0.250-In. SP | 472/333 cfm |
| Speed Control | Yes |
| Hz | 60 |
| Height | 10 3/8 in |
| CFM @ 0.500-In. SP | 415/271 cfm |
| Standards | cULus, HVI |
| Green Certification or Other Recognition | ENERGY STAR |

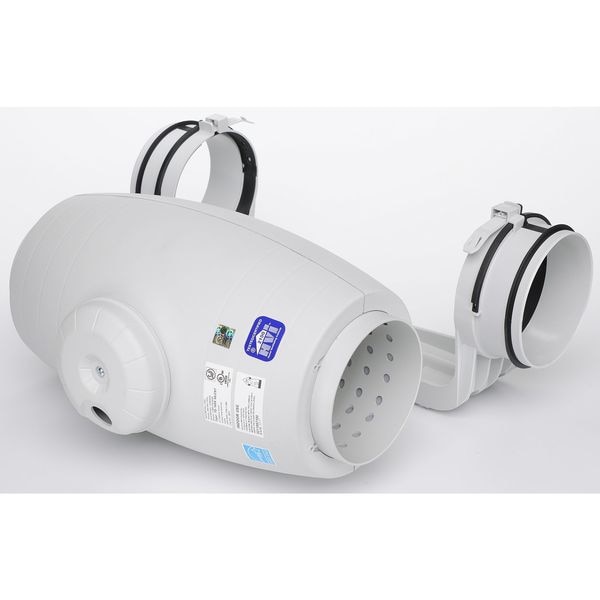

| Includes | Mounting Bracket |
| Inlet and Outlet Dia. | 8 in |
| Phase | 1 |
| Motor Enclosure | Totally Enclosed |
| Housing Finish | Off White |
| CFM @ 1.000-In. SP | 204/46 cfm |
| Overall Diameter | 10-3/8 in |
| Overall Height | 10-3/8 in |
| Airflow @ 0.000 in SP | 530 cfm |
| High-Efficiency Motor | No |
| Motor Speed | 2,200 rpm |
| Speed Control Included | Yes |
| Nameplate Voltage | 120V AC |
| Overall Width | 22-3/8 in |
| Speed Controllable | Yes |
| Maximum Inlet Air Temperature | 140 deg F |
| Housing Color | Off White |
| Mounting Orientation | Horizontal, Vertical |
| Motor Output Power | 122 W |
| Application | General Purpose |
| Motor IP Rating | IP44 |
| For Fan Type | In-Line Duct Fan |
| Duct Diameter | 8 in |
| Country of Origin (subject to change) | Spain |
| Package Quantity | 1 |
