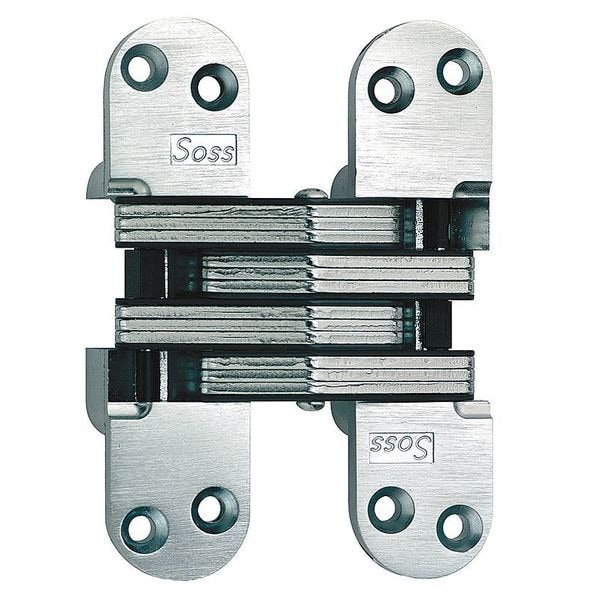

Concealed Hinge, Zamac/Steel, Full Mortise Mounting, 1 3/8 in Leaf W x 5 1/2 in Leaf H
| Corners | Round |
|---|---|
| Door Leaf Height | 5-1/2 in |
| Door Leaf Width | 1-3/8 in |
| Finish | Satin Chrome |
| Holes per Leaf | 4 |
| Load Capacity | Not Applicable |
| Material | Zamac/Steel |
| Mounting | Full Mortise |
| Orientation | Non Handed |
| Range of Motion | 180 deg |
| Required Door Thickness | 2 in |
| Features | For Wood or Metal Applications |
| Hardware | Yes |
| Pin Material | Steel |
| Frame Leaf Width | 1-3/8 in |
| Frame Leaf Height | 5-1/2 in |
| Standards | REACH Compliant, RoHS Compliant |
| Item | Concealed Hinge |
| Ligature Resistant | No |
| Holes | With |
| Pin Type | Nonremovable |
| Color | Silver |
| Frame Leaf Length | 5-1/2 in |
| Frame Leaf Thickness | 1.64 in |
| Width | 3-13/16 in |
| Door Leaf Length | 5-1/2 in |
| Overall Width | 2-5/16 in |
| Leaf Thickness | 1-15/16 in |
| Door Thickness | 2 in |
| Height | 5-1/2 in |
| Hand Orientation | Non-Handed |
| Range of Motion - Maximum | 180 deg |
| Removable Pin | No |
| Door Thickness - Maximum | 2 in |
| Door Thickness - Minimum | 2 in |
| Includes Hardware | Hardware Included |
| Number of Holes per Leaf | 4 |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Fire Rating | Not Applicable |
| Mounting Style | Full Mortise |
| Corner Type | Round |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
