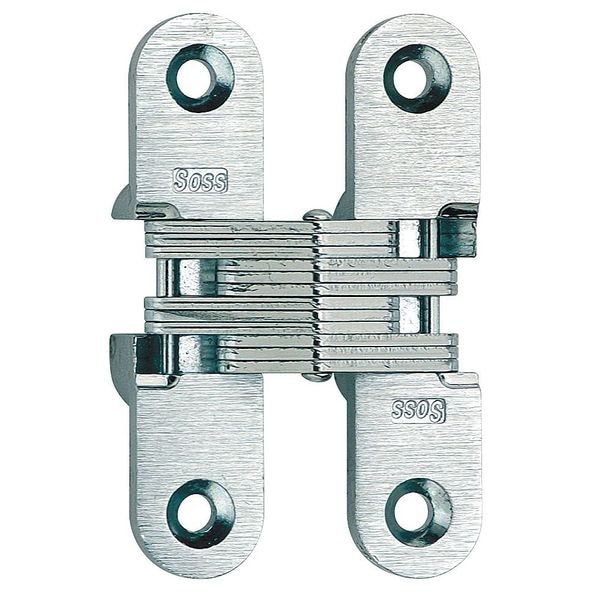

Concealed Hinge, Zamac/Steel, Full Mortise Mounting, 5/8 in Leaf W x 2 3/4 in Leaf H, Satin Chrome
| Corners | Round |
|---|---|
| Door Leaf Height | 2-3/4 in |
| Door Leaf Thickness | 0.906 in |
| Door Leaf Width | 5/8 in |
| Finish | Satin Chrome |
| Holes per Leaf | 2 |
| Load Capacity | Not Applicable |
| Material | Zamac/Steel |
| Mounting | Full Mortise |
| Orientation | Non Handed |
| Range of Motion | 180 deg |
| Required Door Thickness | 1 in |
| Features | Medium Duty; For Wood or Metal Applications |
| Item | Concealed Hinge |
| Frame Leaf Length | 2-3/4 in |
| Frame Leaf Height | 2-3/4 in |
| Frame Leaf Width | 5/8 in |
| Holes | With |
| Ligature Resistant | No |
| Pin Type | Nonremovable |
| Pin Material | Steel |
| Hardware | Yes |
| Standards | REACH Compliant, RoHS Compliant |
| Frame Leaf Thickness | 0.906 in |
| Height | 2-3/4 in |
| Width | 1-45/64 in |
| Color | Silver |
| Overall Width | 1-3/4 in |
| Door Thickness | 1 in |
| Door Leaf Length | 2-3/4 in |
| Leaf Thickness | 29/32 in |
| Hand Orientation | Non-Handed |
| Number of Holes per Leaf | 2 |
| Includes Hardware | Hardware Included |
| Door Thickness - Maximum | 1-1/8 in |
| Corner Type | Round |
| Range of Motion - Maximum | 180 deg |
| Door Thickness - Minimum | 1 in |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Removable Pin | No |
| Fire Rating | Not Applicable |
| Mounting Style | Full Mortise |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
