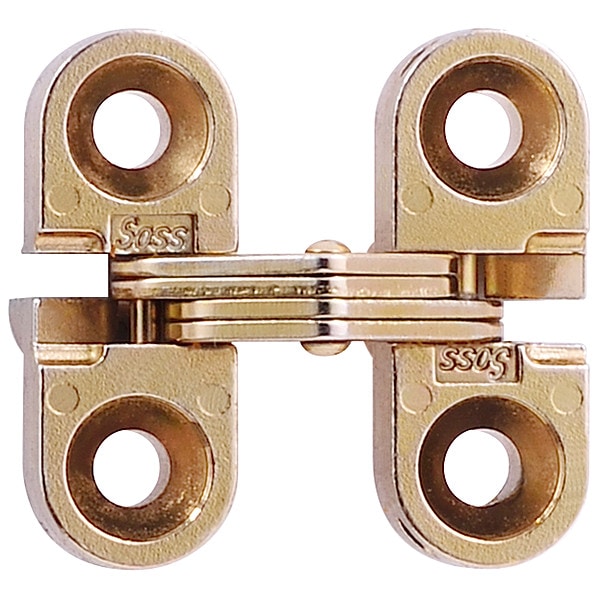

Concealed Hinge, Zamac/Steel Material, PR
| Item | Concealed Hinge |
|---|---|
| Material | Brass |
| Finish | Satin Brass |
| Load Capacity | Not Applicable |
| Range of Motion | 180 Degrees |
| Ligature Resistant | No |
| Holes per Leaf | 2 |
| Orientation | Non Handed |
| Frame Leaf Width | 3/8 in |
| Frame Leaf Height | 1 in |
| Frame Leaf Thickness | 0.469 in |
| Door Leaf Width | 3/8 in |
| Door Leaf Height | 1 in |
| Door Leaf Thickness | 0.469 in |
| Corners | Rounded |
| Pin Material | Steel |
| Pin Type | Nonremovable |
| Mounting | Full Mortise |
| Standards | REACH Compliant, RoHS Compliant |
| Holes | With |
| Hardware | Included |
| Required Door Thickness | 1/2 in |
| Door Thickness - Minimum | 1/2 in |
| Fire Rating | Not Applicable |
| Overall Width | 1-1/16 in |
| Door Thickness - Maximum | 3/4 in |
| Removable Pin | No |
| Mounting Style | Full Mortise |
| Range of Motion - Maximum | 180 deg |
| Number of Holes per Leaf | 2 |
| Includes Hardware | Hardware Included |
| Hand Orientation | Non-Handed |
| ANSI/BHMA Finish | Satin Brass, Clear Coated |
| Corner Type | Round |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
