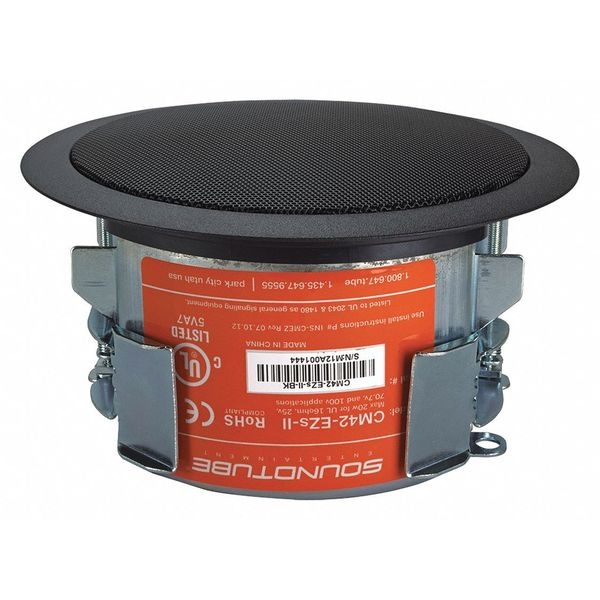

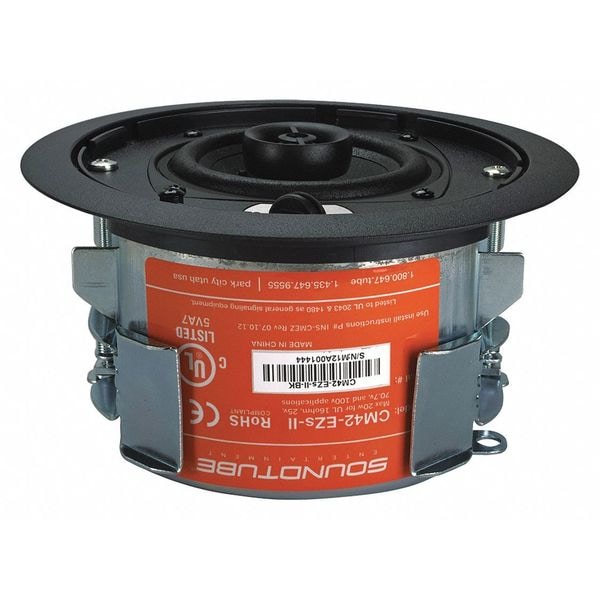

In-Ceiling Speaker, Black, 20 Max. Wattage
| Item | In-Ceiling Speaker |
|---|---|
| Type | In Ceiling |
| Standards | CE, EN54, RoHS, UL1480A, UL2043 |
| Indoor/Outdoor | Indoor |
| Enclosure Material | Plastic, Metal |
| Enclosure Color | Black |
| Includes | Conduit Clamp, Cover Plate, Grille, Paint Mask, Tile Bridge or Pre-Construction Bracket |
| Sensitivity (dB) | 84 |
| Overall Length (In.) | 9 |
| Overall Height (In.) | 6 |
| Weight (Lbs.) | 5 |
| Tweeter Composition | Silk |
| Woofer Dia. (In.) | 4 |
| Tweeter Dia. (In.) | 3/4 |
| Impedance (Ohms) | 16 |
| Max. Wattage | 20 W |
| Woofer Composition | Fiber |
| Overall Width (In.) | 9 |
| Watt (RMS) | 20 |
| Transformer Settings | 25V/70V/100V |
| Power Taps @ 75V | 20 |
| Power Taps @ 25V | 2 |
| Frequency Response | 160Hz to 20KHz |
| Number of Channels | 1 |
| Tweeter Diameter | 3/4 in |
| For Location | Indoor |
| Output Wattage - RMS | 20 W |
| Overall Height | 3-3/4 in |
| Includes Transformer | Transformer Included |
| Power Style | Passive |
| Dispersion - Conical | 95 deg |
| Power Voltage | Not Applicable |
| Sensitivity | 88 dB |
| Mid-Range Diameter | Not Applicable |
| Impedance | 16 ohms |
| Mounting Style | Flush Mount |
| Driver Configuration | 2-Way |
| For Hazardous Location | Not Applicable |
| Includes Mounting Hardware | Mounting Hardware Included |
| Overall Depth | 7-1/2 in |
| Tweeter Material | Silk |
| Enclosure Style | Backcan |
| Housing Material | ABS, Steel |
| Transformer Taps @ 25V | 2.5 W |
| Transformer Taps @ 70V | 20 W |
| Frequency Response - Maximum | 22 kHz |
| Output Wattage - Peak | 40 W |
| Mid-Range Material | Not Applicable |
| Woofer Diameter | 4 in |
| Overall Width | 7-1/2 in |
| Housing Color | Black |
| Frequency Response - Minimum | 125 Hz |
| IP Rating | Not Applicable |
| Woofer Material | Fiber |
| Compatible Input Voltage | 25V, 70V, 100V |
| Dispersion - Vertical | Not Applicable |
| Dispersion - Horizontal | Not Applicable |
| Transformer Taps @ Low Voltage | 16 ohms |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
