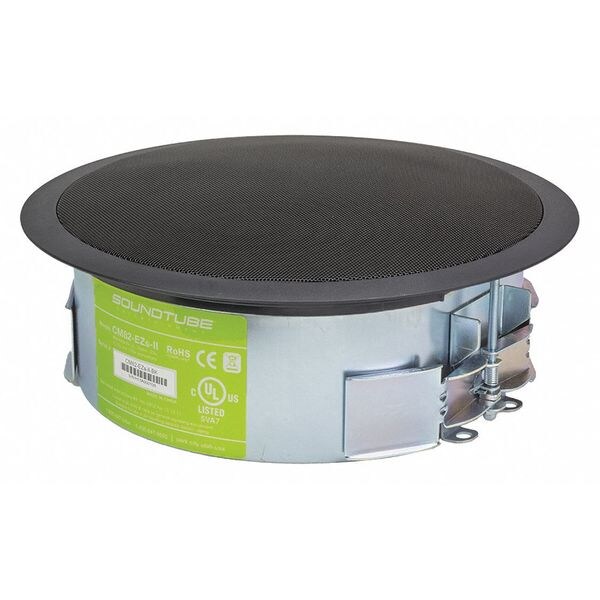

In-Ceiling Speaker, Black, 64 Max. Wattage
| Item | In-Ceiling Speaker |
|---|---|
| Type | In Ceiling |
| Standards | CE Compliant, RoHS, UL1480A, UL2043 |
| Indoor/Outdoor | Indoor |
| Enclosure Material | Plastic, Metal |
| Enclosure Color | Black |
| Includes | Conduit Clamp, Cover Plate, Grille, Paint Mask, Tile Bridge or Pre-Construction Bracket |
| Sensitivity (dB) | 88 |
| Overall Length (In.) | 13 |
| Overall Height (In.) | 6 |
| Weight (Lbs.) | 9 |
| Tweeter Composition | Silk |
| Max. Wattage | 64 W |
| Woofer Composition | Polypropylene, Butyl |
| Tweeter Dia. (In.) | 1 |
| Impedance (Ohms) | 16 |
| Woofer Dia. (In.) | 8 |
| Power Taps @ 25V | 8 |
| Watt (RMS) | 64 |
| Overall Width (In.) | 13 |
| Power Taps @ 75V | 64 |
| Frequency Response | 109Hz to 19KHz |
| Transformer Settings | 25V/70V/100V |
| Sensitivity | 86 dB |
| Transformer Taps @ 70V | 64 W |
| Output Wattage - RMS | 64 W |
| Overall Width | 11-3/4 in |
| IP Rating | Not Applicable |
| Dispersion - Vertical | Not Applicable |
| Tweeter Diameter | 1 in |
| Enclosure Style | Backcan |
| Mounting Style | Flush Mount |
| Housing Color | Black |
| Driver Configuration | 2-Way |
| Frequency Response - Maximum | 22 kHz |
| For Hazardous Location | Not Applicable |
| Includes Transformer | Transformer Included |
| Overall Height | 4 in |
| Mid-Range Material | Not Applicable |
| Compatible Input Voltage | 25V, 70V, 100V |
| Woofer Material | Fiber |
| Output Wattage - Peak | 128 W |
| Tweeter Material | Silk |
| Housing Material | ABS Glass Fiber |
| Power Voltage | Not Applicable |
| Transformer Taps @ Low Voltage | 16 ohms |
| Impedance | 16 ohms |
| Dispersion - Horizontal | Not Applicable |
| Number of Channels | 1 |
| For Location | Indoor |
| Overall Depth | 11-3/4 in |
| Woofer Diameter | 8 in |
| Frequency Response - Minimum | 65 Hz |
| Power Style | Passive |
| Transformer Taps @ 25V | 8 W |
| Includes Mounting Hardware | Mounting Hardware Included |
| Dispersion - Conical | 40 deg |
| Mid-Range Diameter | Not Applicable |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
