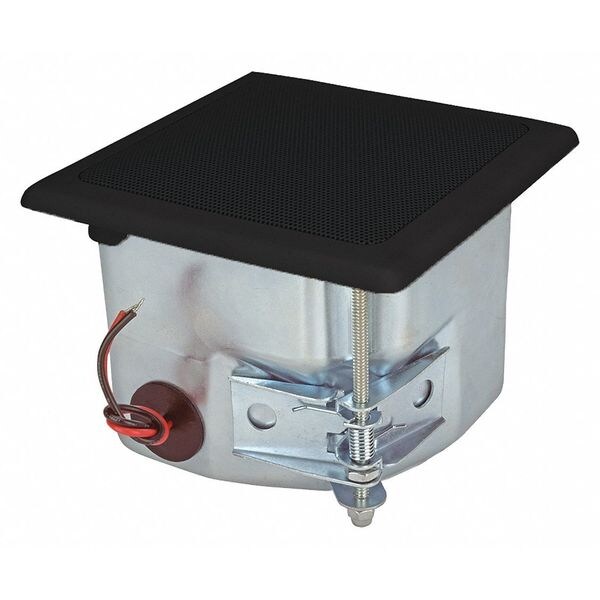

Speaker, Black, 20 Max. Wattage
| Item | Speaker |
|---|---|
| Type | In Wall |
| Standards | CE Compliant, RoHS, UL1480A, UL2043 |
| Indoor/Outdoor | Indoor |
| Enclosure Material | Plastic, Metal |
| Enclosure Color | Black |
| Includes | Conduit Clamp, Grille, Hole Template, Paint Mask, Wire Nuts |
| Sensitivity (dB) | 85 |
| Overall Length (In.) | 8 |
| Overall Height (In.) | 9 |
| Weight (Lbs.) | 4 |
| Tweeter Composition | Paper |
| Watt (RMS) | 20 W |
| Power Taps @ 75V | 10 W |
| Frequency Response | 100Hz to 22KHz |
| Overall Width (In.) | 8 |
| Transformer Settings | 25V/70V/100V |
| Woofer Composition | Polypropylene, Butyl |
| Power Taps @ 25V | 1 W |
| Woofer Dia. (In.) | 3 |
| Max. Wattage | 20 W |
| Tweeter Dia. (In.) | 1 |
| Number of Channels | 1 |
| Includes Mounting Hardware | Mounting Hardware Included |
| Frequency Response - Minimum | 115 Hz |
| Power Voltage | Not Applicable |
| Overall Depth | 5 in |
| Output Wattage - RMS | 20 W |
| Overall Width | 5 in |
| Impedance | 8 ohms |
| Dispersion - Conical | 45 deg |
| IP Rating | IP5X |
| Overall Height | 4 in |
| Sensitivity | 86 dB |
| For Location | Indoor, Outdoor |
| Mounting Style | Surface Mount |
| Transformer Taps @ 70V | 10 W |
| Transformer Taps @ 25V | 1.3 W |
| Frequency Response - Maximum | 22 kHz |
| Woofer Material | Polypropylene, Butyl |
| Tweeter Material | Paper |
| Compatible Input Voltage | 25V, 70V, 100V |
| Housing Material | ABS Glass Fiber |
| Tweeter Diameter | 1 in |
| Transformer Taps @ Low Voltage | 8 ohms |
| Dispersion - Horizontal | Not Applicable |
| Mid-Range Material | Not Applicable |
| Output Wattage - Peak | 40 W |
| Housing Color | Black |
| Enclosure Style | Backcan |
| Dispersion - Vertical | Not Applicable |
| Woofer Diameter | 3 in |
| Driver Configuration | 1-Way |
| For Hazardous Location | Not Applicable |
| Power Style | Passive |
| Includes Transformer | Transformer Included |
| Mid-Range Diameter | Not Applicable |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
