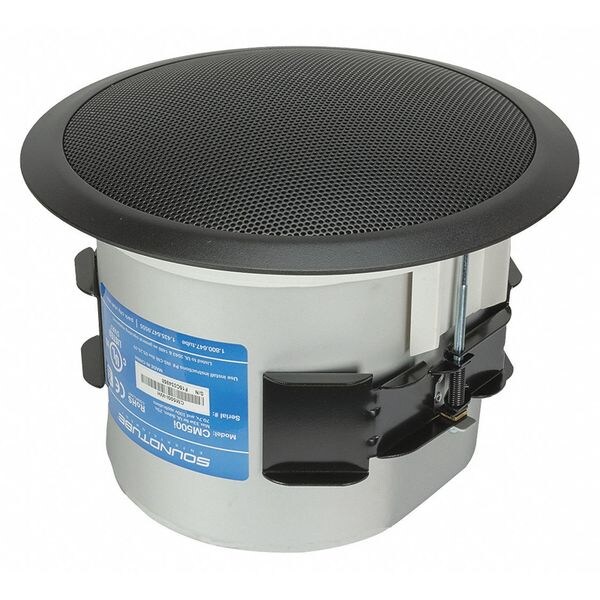

Speaker, Black, 75 Max. Wattage
| Item | Speaker |
|---|---|
| Type | In Ceiling |
| Standards | CE Compliant, RoHS, UL1480A, UL2043 |
| Indoor/Outdoor | Indoor |
| Enclosure Material | Plastic, Metal |
| Enclosure Color | Black |
| Includes | Conduit Plate, Euroblock, Grille, Paint Mask, Tile Bridge |
| Sensitivity (dB) | 87 |
| Overall Length (In.) | 14 |
| Overall Height (In.) | 16 |
| Weight (Lbs.) | 13 |
| Tweeter Composition | Aluminum |
| Woofer Dia. (In.) | 5-1/4 |
| Impedance (Ohms) | 8 |
| Tweeter Dia. (In.) | 1 |
| Woofer Composition | Polypropylene, Butyl |
| Max. Wattage | 75 W |
| Transformer Settings | 25V/70V/100V |
| Frequency Response | 75Hz to 22KHz |
| Overall Width (In.) | 14 |
| Watt (RMS) | 75 |
| Power Taps @ 75V | 33 |
| Power Taps @ 25V | 4 |
| Number of Channels | 1 |
| Woofer Material | Polypropylene |
| Overall Depth | 10-3/4 in |
| Includes Mounting Hardware | Mounting Hardware Included |
| Dispersion - Vertical | Not Applicable |
| Housing Color | Black |
| Tweeter Material | Titanium |
| For Hazardous Location | Not Applicable |
| Impedance | 8 ohms |
| Includes Transformer | Transformer Included |
| Tweeter Diameter | 1 in |
| Transformer Taps @ 25V | 5 W |
| Housing Material | ABS, Aluminum |
| Driver Configuration | 2-Way |
| Frequency Response - Minimum | 55 Hz |
| IP Rating | Not Applicable |
| Mid-Range Diameter | Not Applicable |
| Frequency Response - Maximum | 22 kHz |
| Sensitivity | 87 dB |
| Power Voltage | Not Applicable |
| Compatible Input Voltage | 25V, 70V, 100V |
| For Location | Indoor |
| Output Wattage - Peak | 150 W |
| Transformer Taps @ Low Voltage | 8 ohms |
| Overall Height | 8-3/4 in |
| Mid-Range Material | Not Applicable |
| Output Wattage - RMS | 75 W |
| Dispersion - Horizontal | Not Applicable |
| Transformer Taps @ 70V | 33 W |
| Power Style | Passive |
| Enclosure Style | Backcan |
| Woofer Diameter | 5-1/4 in |
| Overall Width | 10-3/4 in |
| Mounting Style | Flush Mount |
| Dispersion - Conical | 125 deg |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
