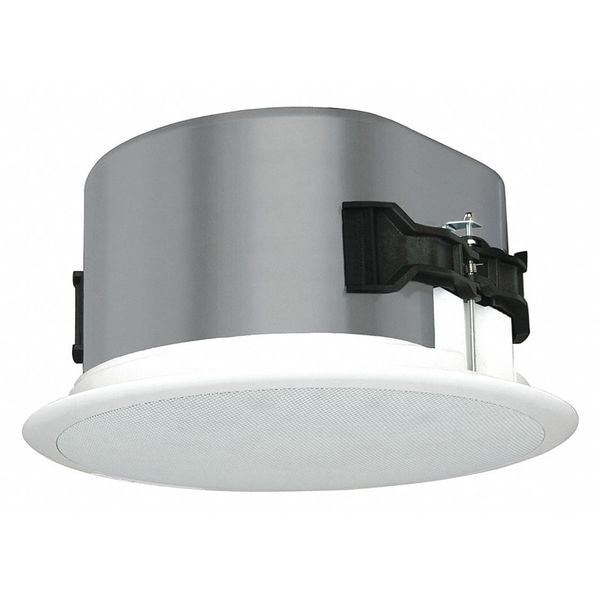

Speaker, White, 125 Max. Wattage
| Item | Speaker |
|---|---|
| Type | In Ceiling |
| Standards | CE, RoHS, UL1480, UL2043 |
| Indoor/Outdoor | Indoor |
| Enclosure Material | Plastic, Metal |
| Enclosure Color | White |
| Includes | Conduit Plate, Euroblock, Grille, Paint Mask, Tile Bridge |
| Sensitivity (dB) | 93 +/-3 |
| Overall Length (In.) | 16 |
| Overall Height (In.) | 19 |
| Weight (Lbs.) | 17 |
| Tweeter Composition | Titanium |
| Woofer Dia. (In.) | 8 |
| Max. Wattage | 125 W |
| Impedance (Ohms) | 8 |
| Woofer Composition | Paper |
| Tweeter Dia. (In.) | 1-5/16 |
| Power Taps @ 75V | 66 |
| Transformer Settings | 25V/70V/100V |
| Power Taps @ 25V | 8 |
| Overall Width (In.) | 16 |
| Watt (RMS) | 125 |
| Frequency Response | 80Hz to 22KHz |
| Tweeter Diameter | 1-1/2 in |
| Includes Mounting Hardware | Mounting Hardware Included |
| Frequency Response - Maximum | 22 kHz |
| Housing Material | ABS Glass Fiber |
| For Hazardous Location | Not Applicable |
| Includes Transformer | Transformer Included |
| Frequency Response - Minimum | 62 Hz |
| Housing Color | White |
| Overall Depth | 14-3/4 in |
| Overall Height | 9 in |
| Sensitivity | 92 dB |
| Number of Channels | 1 |
| Compatible Input Voltage | 25V, 70V, 100V |
| For Location | Indoor |
| IP Rating | Not Applicable |
| Output Wattage - RMS | 125 W |
| Mounting Style | Flush Mount |
| Mid-Range Diameter | Not Applicable |
| Power Style | Passive |
| Tweeter Material | Titanium |
| Woofer Diameter | 8 in |
| Driver Configuration | 2-Way |
| Dispersion - Vertical | Not Applicable |
| Impedance | 8 ohms |
| Power Voltage | Not Applicable |
| Overall Width | 14-3/4 in |
| Dispersion - Conical | 105 deg |
| Enclosure Style | Backcan |
| Transformer Taps @ 70V | 150 W |
| Woofer Material | Paper |
| Transformer Taps @ Low Voltage | 8 ohms |
| Mid-Range Material | Not Applicable |
| Output Wattage - Peak | 300 W |
| Dispersion - Horizontal | Not Applicable |
| Transformer Taps @ 25V | 19 W |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
