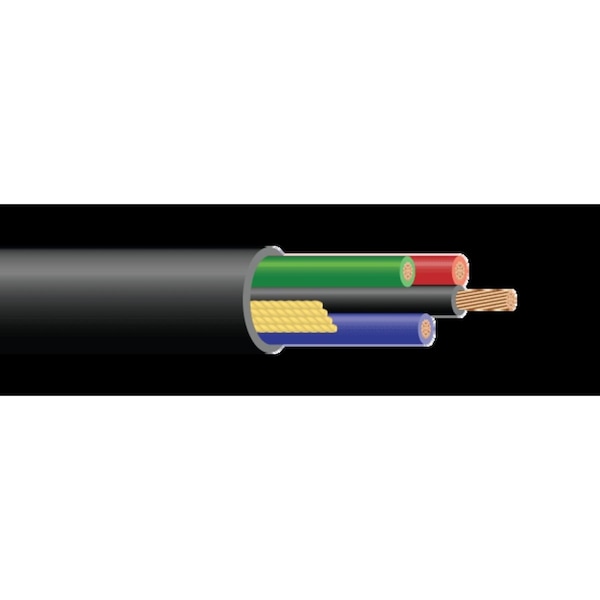

Portable Cord, TC-ER, 14 AWG, 7 C, Black, CPE, 600V
| Item | Portable Cord |
|---|---|
| Trade Designation | TC-ER |
| Wire Size | 14 AWG |
| Number of Conductors | 7 |
| Jacket Material | CPE |
| Jacket Color | Black |
| Length | 250 ft |
| Voltage | 600 V |
| Conductor Material | Copper |
| Standards | ASTM B33, ASTM B8, ICEA S-58-679, ICEA S-73-532, ICEA S-95-658, IEEE 1202, UL 1277, UL 1685, UL 44 |
| Temp. Rating | 250°C |
| Wire Color | Black, Blue, Brown, Orange, Red, Red-Black, Yellow |
| Outside Dia. | 0.41 in |
| Shielded | Unshielded |
| Nom. Od (Mils) | 412 mil |
| No. of Strands | 7 |
| Insulation Thickness (Mils) | 15 mil |
| Applications | ApplicationSouthwire's 600 Volt Type TC-ER control cables are suited for use in wet and dry areas, conduits, ducts, troughs, trays, direct burial, aerial supported by a messenger, and where superior electrical properties are desired. These cables are capable of operating continuously at the conductor temperature not in excess of 90°C for normal operation in wet and dry locations, 130°C for emergency overload, and 250°C for short circuit conditions. For uses in Class I, II, and III, Division 2 hazardous locations per NEC Article 501 and 502. Exposed runs (TC-ER) per NEC 336.10. VW-1 Rated. |
| Construction | ConstructionConductor:7 strands class B compressed tinned copper per ASTM B33 and ASTM B8Insulation:Ethylene Propylene Rubber (EPR) XHHW-2, 30 Mils thick. VW-1 Rated.Binder:Polyester flat thread binder tapeOverall Jacket:Chlorinated Polyethylene (CPE) Jacket |
| Package Quantity | 1 |
