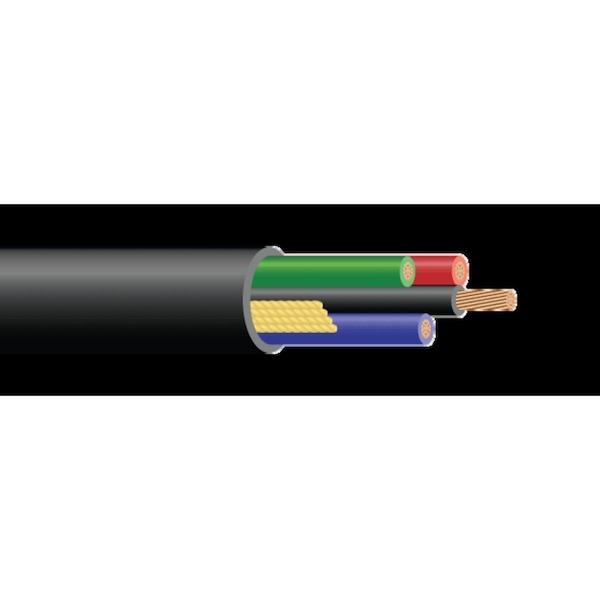

Portable Cord, THHN, 12 AWG, 4 C, Black, PVC, Stranded, 600V, Outdoor, 500 ft
| Item | Portable Cord |
|---|---|
| Trade Designation | THHN |
| Wire Size | 12 AWG |
| Number of Conductors | 4 |
| Conductor Design | Stranded |
| Jacket Material | PVC |
| Jacket Color | Black |
| Length | 500 ft |
| Location | Outdoor |
| Voltage | 600V |
| Conductor Material | Copper |
| Standards | ASTM B33, ASTM B8, ICEA S-58-679, ICEA S-73-532, ICEA S-95-658, IEEE 1202, UL 1277, UL 1685, UL 44 |
| Outside Dia. | 0.41 in |
| Nominal Outside Dia. | 0.41 in |
| Shielding Material | PVC |
| Overall Length | 500 ft |
| Shielding | Shielded |
| Wire Color | Black, Blue, Orange, Red |
| Conductor Size | 12 AWG |
| Temp. Rating | 250°C |
| Shielded | Unshielded |
| Construction | ConstructionConductor:7 strands class B compressed tinned copper per ASTM B33 and ASTM B8Insulation:Ethylene Propylene Rubber (EPR) XHHW-2, 30 Mils thick. VW-1 Rated.Binder:Polyester flat thread binder tapeOverall Jacket:Chlorinated Polyethylene (CPE) Jacket |
| Nom. Od (Mils) | 406 mil |
| Applications | ApplicationSouthwire's 600 Volt Type TC-ER control cables are suited for use in wet and dry areas, conduits, ducts, troughs, trays, direct burial, aerial supported by a messenger, and where superior electrical properties are desired. These cables are capable of operating continuously at the conductor temperature not in excess of 90°C for normal operation in wet and dry locations, 130°C for emergency overload, and 250°C for short circuit conditions. For uses in Class I, II, and III, Division 2 hazardous locations per NEC Article 501 and 502. Exposed runs (TC-ER) per NEC 336.10. VW-1 Rated. |
| Insulation Thickness (Mils) | 15 mil |
| No. of Strands | 7 |
| Temperature Rating - Maximum Wet | 167 deg F |
| Temperature Rating - Maximum Dry | 482 deg F |
| Conductor Insulation Color | Black, Blue, Orange, Red |
| Nominal Outside Diameter | 0.41 in |
| Conductor Insulation Material | PVC |
| Number of Strands | 7 |
| Grounding Conductor Material | Not Applicable |
| Packaging | Reel |
| Grounding Conductor Size | Not Applicable |
| Grounding Conductor Insulation Color | Not Applicable |
| Series | Not Applicable |
| Number of Ground Conductors | 0 |
| Grounding Conductor Insulation Material | Not Applicable |
| Package Quantity | 1 |
