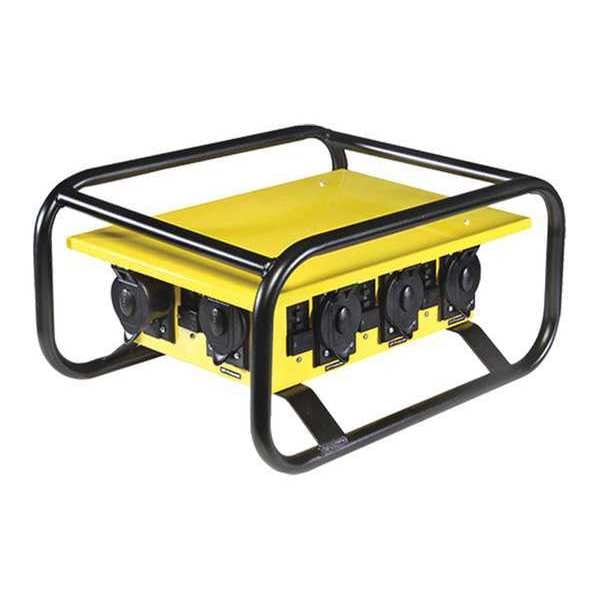

La Caja de Distribución de Energía Southwire es perfecta para distribuir energía de 120/240VAC con una capacidad de 50A. Ideal para aplicaciones industriales y comerciales.
| Item | Power Distribution Box |
|---|---|
| Phase | Single |
| Amps | 50 |
| Number of Outlets | 4 |
| Voltage Rating | 120/240V AC |
| Inlet | Locking Receptacle 50A @ 125/250V AC |
| Outlet | (4) 30A @ 125/250V L14-30R Non-GFCI |
| Enclosure Rating | NEMA 3R |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Color | Yellow |
| Features | 1-Phase with Frame |
| Material of Construction | Heavy-Duty Steel |
| Standards | cULus |
| Base Type | Frame |
| Inlet Voltage Rating | 125/250V AC |
| Outlets Included | (4) L14-30 |
| Inlet Current Rating | 50 A |
| Housing Material Thickness | 14 ga |
| Housing Color | Yellow |
| Feed Through Receptacle | CS6369 |
| Housing Material | Stainless Steel, Steel |
| Number of Wheels | Not Applicable |
| Inlet Receptacle | Locking Receptacle 50A @ 125/250V AC |
| NEMA Enclosure Rating | 3R |
| Package Quantity | 1 |
