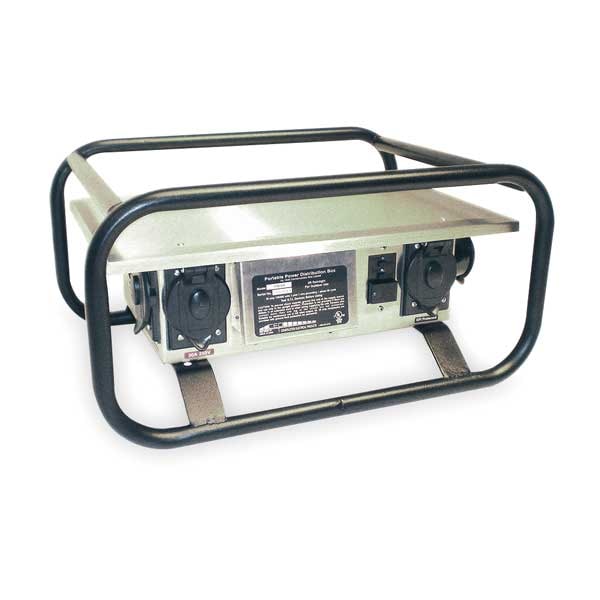

La caja de distribución de energía de Southwire ofrece 50 corrientes alternas y cuenta con 1 tomacorriente 5-20R para proporcionar energía de forma segura y eficiente.
| Item | Power Distribution Box |
|---|---|
| Phase | Single |
| Amps | 50 |
| Number of Outlets | 7 |
| Voltage Rating | 120/240V AC |
| Inlet | Locking Receptacle 50A @ 125/250V AC |
| Outlet | (1) L6-30R, (6) 5-20R GFCI |
| Enclosure Rating | NEMA 3R |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Color | Silver |
| Features | 1-Phase, Automatic Reset GFCI with Frame |
| Material of Construction | stainless steel |
| Standards | cULus |
| Inlet Voltage Rating | 125/250V AC |
| Includes GFCI | Automatic Reset GFCI |
| Inlet Receptacle | Locking Receptacle 50A @ 125/250V AC |
| Feed Through Receptacle | CS63 |
| For Environment | Outdoor |
| Housing Material | Stainless Steel |
| Number of Wheels | Not Applicable |
| Housing Color | Yellow |
| Inlet Current Rating | 50 A |
| Base Type | Frame |
| NEMA Enclosure Rating | 3R |
| Outlets Included | (6) 5-20, L6-30 |
| Package Quantity | 1 |
