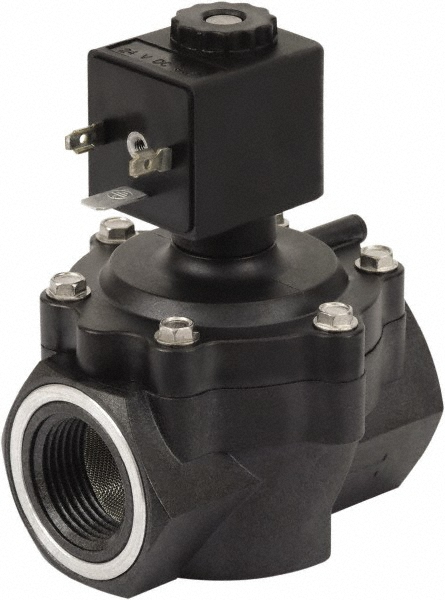

Normally Closed, Composite, Viton Seal, 120Vac
| Valve Type | Two-Way; Two-Position |
|---|---|
| Port Size | 1 in |
| Valve Unactuated State | Normally Closed |
| Body Material | Composite |
| Seal Material | Viton |
| Voltage | 120V AC |
| Maximum Working Pressure (PSI - 3 Decimals) | 120 |
| Cv Factor Nc | 14.0000 |
| Orifice Size | 1-1/8 |
| Coil Type | DIN Spade |
| Minimum Working Pressure (psi) | 10 |
| Special Item Information | Materials in Contact with Media: Brass; No Manual Override |
| UNSPSC Code | 40141605 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 47241724 |
