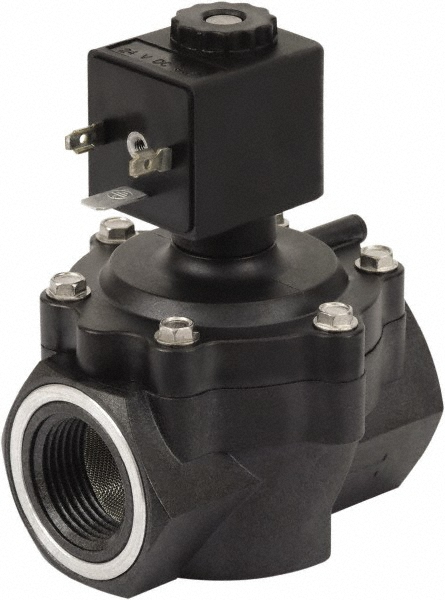

Normally Closed, Composite, Nitrile Seal, 24Vdc
| Valve Type | Two-Way; Two-Position |
|---|---|
| Port Size | 3/4 in |
| Valve Unactuated State | Normally Closed |
| Body Material | Composite |
| Seal Material | Nitrile |
| Voltage | 24V DC |
| Maximum Working Pressure (PSI - 3 Decimals) | 120 |
| Cv Factor Nc | 9.5000 |
| Orifice Size | 1-1/8 |
| Coil Type | DIN Spade with Connector |
| Minimum Working Pressure (psi) | 10 |
| Special Item Information | Materials in Contact with Media: Stainless Steel; No Manual Override |
| UNSPSC Code | 40141605 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 47241831 |
