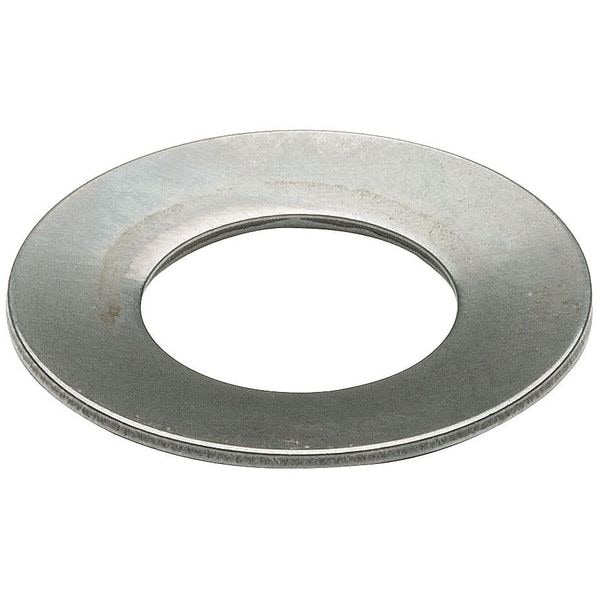

Belleville Spring, Carbon Steel, PK25
| Item | Belleville Spring |
|---|---|
| System of Measurement | Inch |
| Material | Carbon Steel |
| Thickness | 0.028 in |
| Overall Height | 0.05 in |
| Finish | Oil |
| Type | Belleville Spring Washer |
| Max. Outside Dia. | 3/4 in |
| Deflection @ Load | 0.039 in |
| Min. Inside Dia. | 0.38 in |
| Load @ Deflection (Lbs.) | 93 to 127 lb |
| For Rod Size | 0.375 |
| For Hole Size | 0.75 |
| Calculated Load @ Flat (Lbs.) | 175 lb |
| Spring Rate (Lbs./In.) | 0.051 |
| Meets/Exceeds | ASTM-A684 |
| Compatible Rod Size | 3/8 in |
| Compatible Hole Diameter | 3/4 in |
| Disc Type | Spring |
| Spring Rate | 0.051 lb/in |
| Inside Diameter - Minimum | 0.38 in |
| Outside Diameter - Maximum | 3/4 in |
| Calculated Load @ Flat | 175 lbf |
| Standards | ASTM A684 |
| Country of Origin (subject to change) | Switzerland |
| Package Quantity | 25 |
