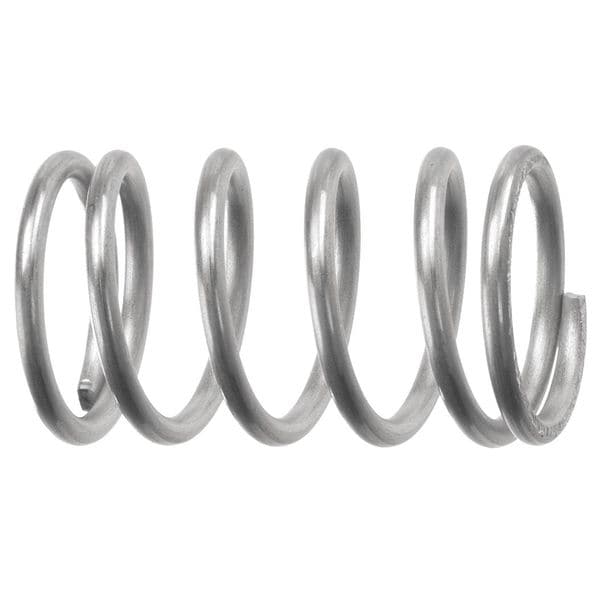

Compression Spring, 302 SS, PK10
| Type | Precision |
|---|---|
| Material | 302 Stainless Steel |
| Overall Length | 15.5 mm |
| Outside Dia. | 3.83 mm |
| Wire Dia. | 0.63 mm |
| Large Outside Dia. | 3.83 mm |
| Compressed Length | 10.3 mm |
| Spring Rate | 3.27 N/mm |
| For Rod Size | 2.57 mm |
| Wire Type | Round |
| For Hole Size | Not Applicable |
| Meets/Exceeds | AMS 5688, DIN 17224, EN 10270-3, JIS G4314 SUS 302/304 |
| Deflection @ Load | 15.094 mm |
| End Type | Squared |
| Finish | Plain |
| Item | Compression Spring |
| Product Type | Compression Spring |
| Wire Diameter | 0.63 mm |
| System of Measurement | Metric |
| Inside Diameter | 2.57 mm |
| Outside Diameter - Minimum | Not Applicable |
| Outside Diameter - Maximum | Not Applicable |
| Free Length | 15.5 mm |
| Inside Diameter - Maximum | Not Applicable |
| Outside Diameter | 3.83 mm |
| Spring Shape | Cylindrical |
| Inside Diameter - Minimum | Not Applicable |
| Compatible Hole Diameter | Not Applicable |
| Compatible Rod Size | 2.5625 mm |
| Standards | DIN 17224, AMS 5688, EN 10270-3, JIS G4314 SUS 302/304 |
| Country of Origin (subject to change) | China |
| Package Quantity | 10 |
