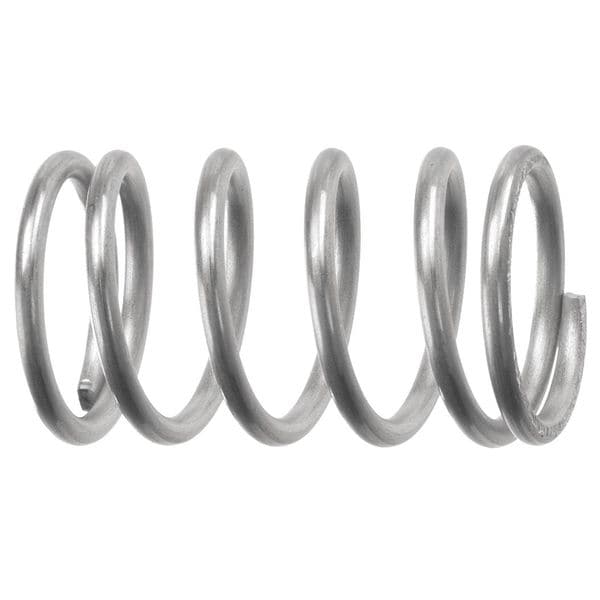

Compression Spring Music Wire, PK5, C00940120563S
| Type | Precision |
|---|---|
| Material | 302 Stainless Steel |
| Overall Length | 9/16 in |
| Outside Dia. | 0.094 in |
| Wire Dia. | 0.012 in |
| Large Outside Dia. | 0.094 in |
| Compressed Length | 0.36 in |
| Spring Rate | 3.6 lb/in |
| Load @ Solid (Lbs.) | 0.74 |
| Deflection @ Load | 0.208 in |
| Finish | Plain |
| Meets/Exceeds | AMS 5688, ASTM A313 |
| Wire Type | Round |
| For Hole Size | Not Applicable |
| For Rod Size | 0.07 in |
| Load @ 50% Free Length (Lbs.) | 1.01 |
| Load (Lbs.) | 0.74 |
| End Type | Squared |
| Item | Compression Spring |
| Product Type | Compression Spring |
| Wire Diameter | 0.01 in |
| Outside Diameter - Maximum | Not Applicable |
| Outside Diameter - Minimum | Not Applicable |
| Inside Diameter - Maximum | Not Applicable |
| Inside Diameter | 0.07 in |
| Outside Diameter | 0.09 in |
| Spring Shape | Cylindrical |
| System of Measurement | Inch |
| Compatible Hole Diameter | Not Applicable |
| Compatible Rod Size | 1/16 in |
| Inside Diameter - Minimum | Not Applicable |
| Free Length | 9/16 in |
| Standards | AMS 5688, ASTM A313 |
| Country of Origin (subject to change) | China |
| Package Quantity | 5 |
