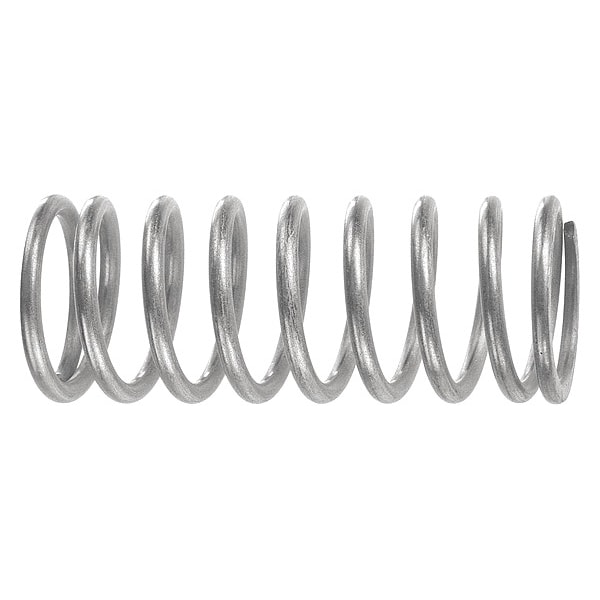

Compression Spring Music Wire, PK5, C01560200560M
| Type | Precision |
|---|---|
| Material | Spring Wire |
| Overall Length | 9/16 in |
| Outside Dia. | 0.156 in |
| Wire Dia. | 0.02 in |
| Large Outside Dia. | 0.156 in |
| Compressed Length | 0.32 in |
| Spring Rate | 11 lb/in |
| Meets/Exceeds | AMS 5112, ASTM-A228 |
| For Hole Size | Not Applicable |
| Load @ 50% Free Length (Lbs.) | 3.08 |
| Finish | Oil |
| Load (Lbs.) | 2.67 |
| For Rod Size | 29/250 in |
| Wire Type | Round |
| Item | Compression Spring |
| Load @ Solid (Lbs.) | 2.67 |
| End Type | Squared |
| Deflection @ Load | 0.242 in |
| Product Type | Compression Spring |
| Outside Diameter | 0.16 in |
| Standards | AMS 5112, ASTM A228 |
| Inside Diameter - Minimum | Not Applicable |
| System of Measurement | Inch |
| Wire Diameter | 0.02 in |
| Outside Diameter - Minimum | Not Applicable |
| Inside Diameter - Maximum | Not Applicable |
| Compatible Rod Size | 1/8 in |
| Compatible Hole Diameter | Not Applicable |
| Inside Diameter | 0.12 in |
| Spring Shape | Cylindrical |
| Free Length | 9/16 in |
| Outside Diameter - Maximum | Not Applicable |
| Country of Origin (subject to change) | China |
| Package Quantity | 5 |
