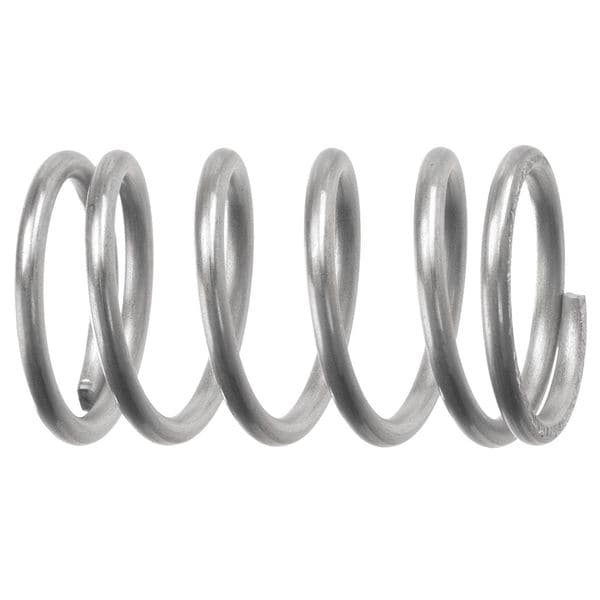

Compression Spring Music Wire, PK5, C02340230560S
| Type | Precision |
|---|---|
| Material | 302 Stainless Steel |
| Overall Length | 9/16 in |
| Outside Dia. | 0.234 in |
| Wire Dia. | 0.023 in |
| Large Outside Dia. | 0.234 in |
| Compressed Length | 0.24 in |
| Spring Rate | 5.9 lb/in |
| Deflection @ Load | 0.319 in |
| Meets/Exceeds | AMS 5688, ASTM A313 |
| For Hole Size | Not Applicable |
| Load (Lbs.) | 1.89 |
| Load @ Solid (Lbs.) | 1.89 |
| Load @ 50% Free Length (Lbs.) | 1.66 |
| Wire Type | Round |
| Finish | Plain |
| End Type | Ground, Closed |
| Item | Compression Spring |
| For Rod Size | 47/250 in |
| Product Type | Compression Spring |
| System of Measurement | Inch |
| Spring Shape | Cylindrical |
| Wire Diameter | 0.02 in |
| Outside Diameter - Minimum | Not Applicable |
| Inside Diameter | 0.18 in |
| Outside Diameter - Maximum | Not Applicable |
| Standards | AMS 5688, ASTM A313 |
| Outside Diameter | 0.23 in |
| Compatible Hole Diameter | Not Applicable |
| Free Length | 9/16 in |
| Inside Diameter - Minimum | Not Applicable |
| Compatible Rod Size | 3/16 in |
| Inside Diameter - Maximum | Not Applicable |
| Country of Origin (subject to change) | China |
| Package Quantity | 5 |
