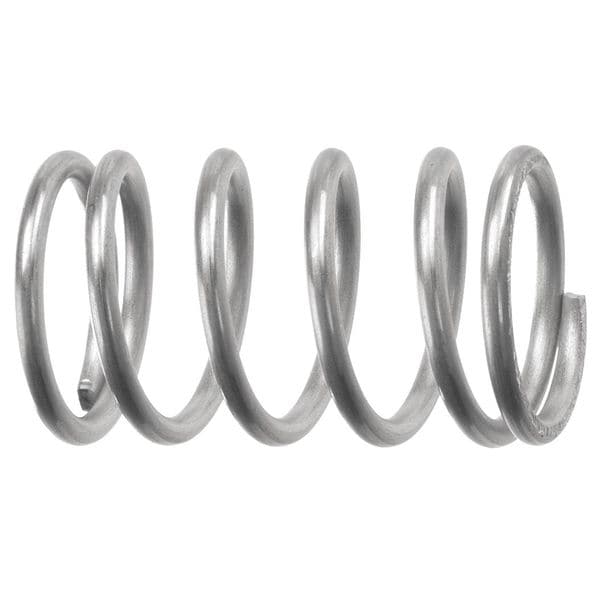

Compression Spring Music Wire, PK5, C05630923000S
| Type | Precision |
|---|---|
| Material | 302 Stainless Steel |
| Overall Length | 3 in |
| Outside Dia. | 0.563 in |
| Wire Dia. | 0.092 in |
| Large Outside Dia. | 0.563 in |
| Compressed Length | 2.14 in |
| Spring Rate | 47.8 lb/in |
| Wire Type | Round |
| Load @ Solid (Lbs.) | 40.96 |
| Meets/Exceeds | AMS 5688, ASTM A313 |
| Finish | Plain |
| Load (Lbs.) | 40.96 |
| End Type | Ground, Closed |
| Deflection @ Load | 0.856 in |
| Item | Compression Spring |
| For Rod Size | 0.379 in |
| Load @ 50% Free Length (Lbs.) | 71.73 |
| For Hole Size | Not Applicable |
| Product Type | Compression Spring |
| System of Measurement | Inch |
| Spring Shape | Cylindrical |
| Wire Diameter | 0.09 in |
| Inside Diameter - Minimum | Not Applicable |
| Compatible Rod Size | 3/8 in |
| Inside Diameter | 0.38 in |
| Free Length | 3 in |
| Outside Diameter - Minimum | Not Applicable |
| Standards | AMS 5688, ASTM A313 |
| Compatible Hole Diameter | Not Applicable |
| Outside Diameter - Maximum | Not Applicable |
| Inside Diameter - Maximum | Not Applicable |
| Outside Diameter | 0.56 in |
| Country of Origin (subject to change) | China |
| Package Quantity | 5 |
