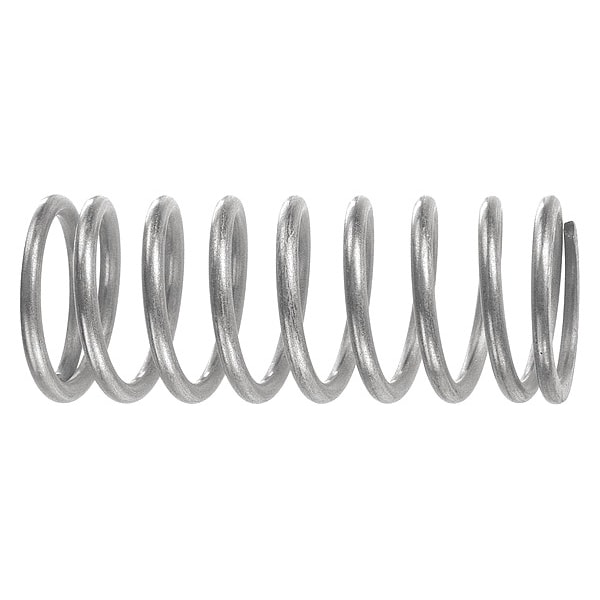

Compression Spring Music Wire, PK5, C08750924000M
| Type | Precision |
|---|---|
| Material | Spring Wire |
| Overall Length | 4 in |
| Outside Dia. | 7/8 in |
| Wire Dia. | 0.092 in |
| Large Outside Dia. | 7/8 in |
| Compressed Length | 1.84 in |
| Spring Rate | 15.5 lb/in |
| Item | Compression Spring |
| For Rod Size | 0.691 in |
| Wire Type | Round |
| For Hole Size | Not Applicable |
| Load @ 50% Free Length (Lbs.) | 30.94 |
| Finish | Oil |
| Deflection @ Load | 2.159 in |
| Meets/Exceeds | AMS 5112, ASTM-A228 |
| Load @ Solid (Lbs.) | 33.4 |
| Load (Lbs.) | 33.4 |
| End Type | Ground, Closed |
| Product Type | Compression Spring |
| Inside Diameter - Maximum | Not Applicable |
| Standards | AMS 5112, ASTM A228 |
| Compatible Rod Size | 45/64 in |
| Inside Diameter - Minimum | Not Applicable |
| Outside Diameter - Minimum | Not Applicable |
| Inside Diameter | 0.7 in |
| Wire Diameter | 0.09 in |
| Compatible Hole Diameter | Not Applicable |
| Outside Diameter - Maximum | Not Applicable |
| Outside Diameter | 0.88 in |
| Spring Shape | Cylindrical |
| System of Measurement | Inch |
| Free Length | 4 in |
| Country of Origin (subject to change) | China |
| Package Quantity | 5 |
