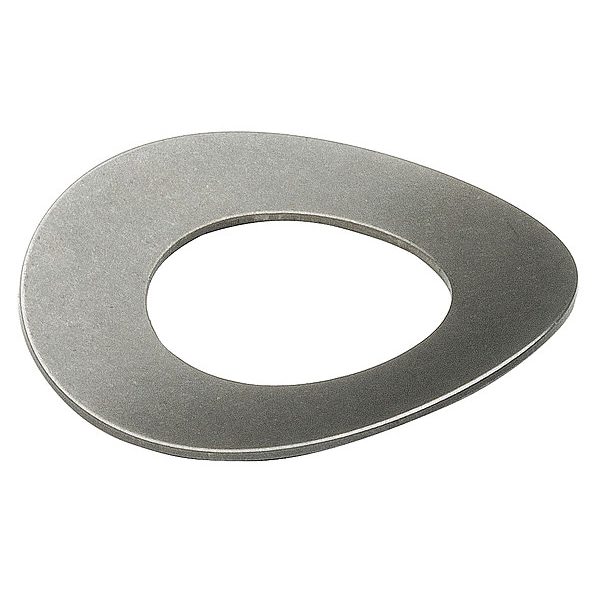

Curved Disc Spring, 301 SS, PK25
| Item | Curved Disc Spring |
|---|---|
| System of Measurement | Inch |
| Material | 301 Stainless Steel |
| Thickness | 0.012 in |
| Overall Height | 0.15 in |
| Finish | Plain |
| Type | Curved Spring Washer |
| Max. Outside Dia. | 0.857 in |
| Deflection @ Load | 0.074 in |
| Min. Inside Dia. | 0.59 in |
| Load @ Deflection (Lbs.) | 1.24 lb |
| Spring Rate (Lbs./In.) | 77 |
| For Rod Size | 0.562 |
| For Hole Size | 0.875 |
| Meets/Exceeds | ASTM-A666 |
| Inside Diameter - Minimum | 0.6 in |
| Outside Diameter - Maximum | 0.86 in |
| Compatible Rod Size | 9/16 in |
| Disc Type | Curved |
| Compatible Hole Diameter | 7/8 in |
| Spring Rate | 77 lb/in |
| Standards | ASTM A666 |
| Country of Origin (subject to change) | United States |
| Package Quantity | 25 |
