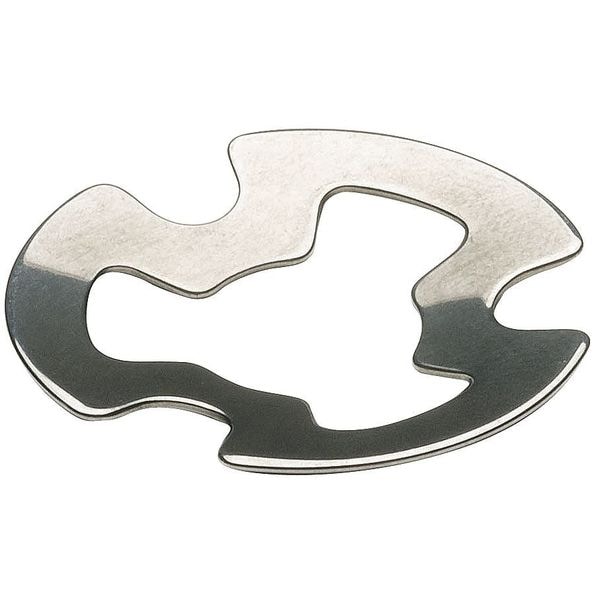

Disc Spring, 0.164, SS, Clover Dome, PK10
| Item | Clover Disc Spring |
|---|---|
| System of Measurement | Inch |
| Material | 17-7 PH Stainless Steel |
| Thickness | 0.02 in |
| Overall Height | 0.04 in |
| Finish | Plain |
| Type | Clover Dome |
| Max. Outside Dia. | 0.343 in |
| Deflection @ Load | Not Applicable |
| Min. Inside Dia. | 0.169 in |
| Load @ Deflection (Lbs.) | 14.7 |
| For Rod Size | 0.164 |
| Spring Rate (Lbs./In.) | 4,347 |
| For Hole Size | 0.344 |
| Disc Type | Dome |
| Compatible Hole Diameter | 11/32 in |
| Standards | AMS 5,529 |
| Spring Rate | 4,347 lb/in |
| Calculated Load @ Flat | 104 lbf |
| Outside Diameter - Maximum | 0.34 in |
| Inside Diameter - Minimum | 0.17 in |
| Compatible Rod Size | 8 in |
| Country of Origin (subject to change) | Belize |
| Package Quantity | 10 |
