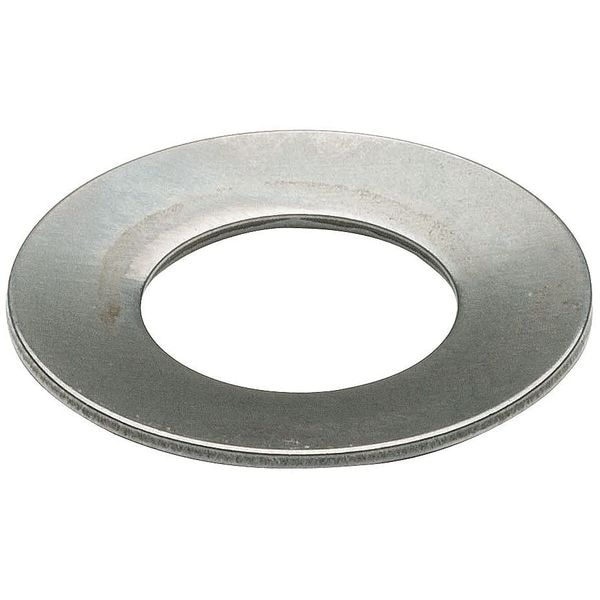

Disc Spring, 0.625, Steel, Belleville, PK10
| Item | Belleville Spring |
|---|---|
| System of Measurement | Inch |
| Material | Carbon Steel |
| Thickness | 0.051 in |
| Overall Height | 0.09 in |
| Finish | Oil |
| Type | Belleville Spring Washer |
| Max. Outside Dia. | 1-1/4 in |
| Deflection @ Load | 0.018 in |
| Min. Inside Dia. | 0.63 in |
| Load @ Deflection (Lbs.) | 340 |
| Calculated Load @ Flat (Lbs.) | 582 |
| For Rod Size | 0.625 |
| For Hole Size | 1.25 |
| Disc Type | Spring |
| Compatible Hole Diameter | 1-1/4 in |
| Inside Diameter - Minimum | 0.63 in |
| Outside Diameter - Maximum | 1-1/4 in |
| Calculated Load @ Flat | 582 lbf |
| Compatible Rod Size | 5/8 in |
| Standards | ASTM A684 |
| Country of Origin (subject to change) | China |
| Package Quantity | 15 |
