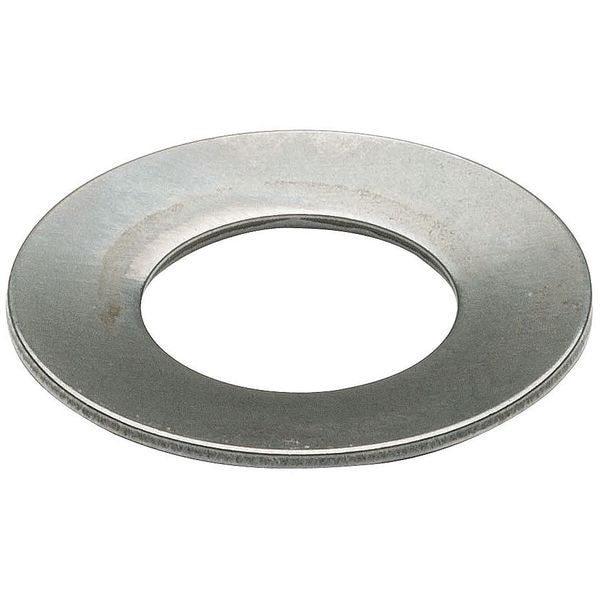

Disc Spring, 1.125, Steel, Belleville, PK10
| Item | Belleville Spring |
|---|---|
| System of Measurement | Inch |
| Material | Carbon Steel |
| Thickness | 0.073 in |
| Overall Height | 0.15 in |
| Finish | Plain |
| Type | Belleville Spring Washer |
| Max. Outside Dia. | 2-1/4 in |
| Deflection @ Load | 0.035 in |
| Min. Inside Dia. | 1-1/8 in |
| Load @ Deflection (Lbs.) | 730 |
| For Rod Size | 1.125 |
| For Hole Size | 2.25 |
| Calculated Load @ Flat (Lbs.) | 1100 |
| Compatible Rod Size | 1-1/8 in |
| Compatible Hole Diameter | 2-1/4 in |
| Inside Diameter - Minimum | 1.13 in |
| Calculated Load @ Flat | 1,100 lbf |
| Outside Diameter - Maximum | 2-1/4 in |
| Standards | ASTM A684 |
| Disc Type | Spring |
| Country of Origin (subject to change) | China |
| Package Quantity | 10 |
