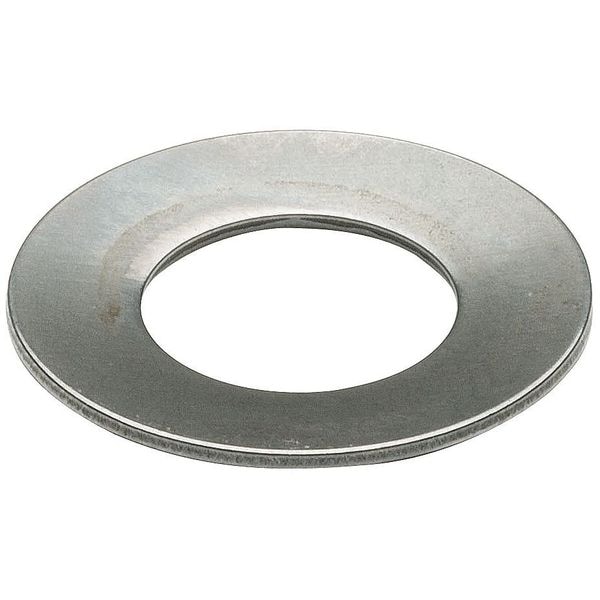

Disc Spring, 1.25, Steel, Belleville, PK10
| Item | Belleville Spring |
|---|---|
| System of Measurement | Inch |
| Material | Carbon Steel |
| Thickness | 0.12 in |
| Overall Height | 0.18 in |
| Finish | Plain |
| Type | Belleville Spring Washer |
| Max. Outside Dia. | 2-1/2 in |
| Deflection @ Load | 0.03 in |
| Min. Inside Dia. | 1-1/4 in |
| Load @ Deflection (Lbs.) | 1760 |
| For Hole Size | 2.5 |
| For Rod Size | 1.25 |
| Calculated Load @ Flat (Lbs.) | 3200 |
| Standards | ASTM A684 |
| Disc Type | Spring |
| Calculated Load @ Flat | 3,200 lbf |
| Compatible Hole Diameter | 2-1/2 in |
| Compatible Rod Size | 1-1/4 in |
| Outside Diameter - Maximum | 2-1/2 in |
| Inside Diameter - Minimum | 1-1/4 in |
| Country of Origin (subject to change) | China |
| Package Quantity | 10 |
