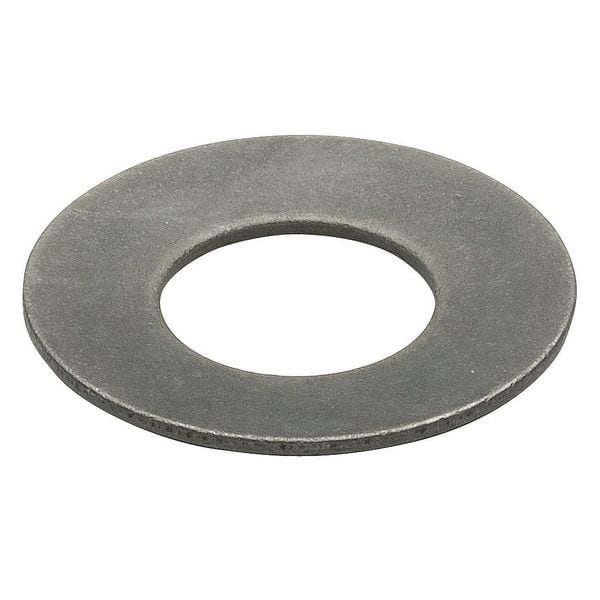

Disc Spring, Steel, I.D. 0.244 In, PK10
| Item | Disc Spring |
|---|---|
| System of Measurement | Metric |
| Material | Carbon Steel |
| Thickness | 0.5 mm |
| Overall Height | 1 mm |
| Finish | Oil |
| Type | Metric Disc Spring |
| Max. Outside Dia. | 0.591 in |
| Deflection @ Load | 0.37 mm |
| Min. Inside Dia. | 0.244 in |
| Load @ Deflection (Lbs.) | 323N |
| Calculated Load @ Flat (Lbs.) | 605N |
| Meets/Exceeds | DIN 2093 |
| Outside Diameter - Maximum | 15 mm |
| Disc Type | Spring |
| Compatible Rod Size | 6.2031 mm |
| Inside Diameter - Minimum | 6.2 mm |
| Calculated Load @ Flat | 605 N |
| Standards | C1074-1075 |
| Country of Origin (subject to change) | China |
| Package Quantity | 25 |
