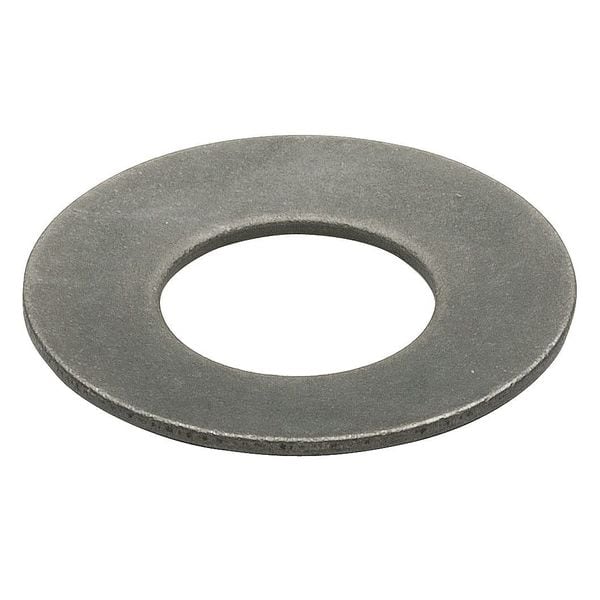

Disc Spring, Steel, I.D. 0.323 In, PK10
| Item | Disc Spring |
|---|---|
| System of Measurement | Metric |
| Material | Carbon Steel |
| Thickness | 0.8 mm |
| Overall Height | 1.3 mm |
| Finish | Oil |
| Type | Metric Disc Spring |
| Max. Outside Dia. | 0.709 in |
| Deflection @ Load | 0.38 mm |
| Min. Inside Dia. | 0.323 in |
| Load @ Deflection (Lbs.) | 651N |
| Meets/Exceeds | DIN 2093 |
| Calculated Load @ Flat (Lbs.) | 1218N |
| Outside Diameter - Maximum | 18 mm |
| Compatible Rod Size | 8.2031 mm |
| Calculated Load @ Flat | 1,218 N |
| Inside Diameter - Minimum | 8.2 mm |
| Standards | C1074-1075 |
| Disc Type | Spring |
| Country of Origin (subject to change) | China |
| Package Quantity | 25 |
