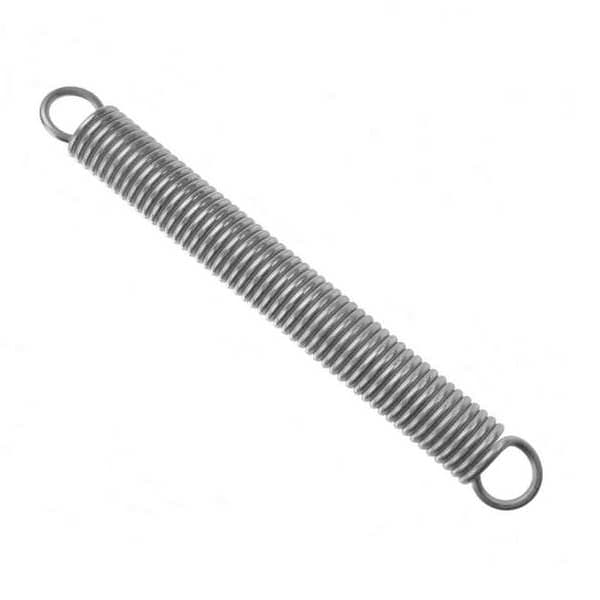

Extension Spring, Carbon Steel, PK2
| Type | High Precision |
|---|---|
| Material | Music Wire |
| Overall Length | 35.3 mm |
| Outside Dia. | 10 mm |
| Wire Dia. | 1.4 mm |
| Spring Rate (Lbs./In.) | 3.83 N/mm |
| Load (Lbs.) | 18.79 |
| Initial Tension (Lbs.) | 2.87 |
| End Type | Full Twist Loop |
| Item | Extension Spring |
| Finish | Oil |
| Deflection @ Load | 18.5 mm |
| Meets/Exceeds | AMS-5112, DIN-17223; JIS-G4314 |
| Wire Diameter | 1.4 mm |
| Spring Rate | 3.83 N/mm |
| Extended Length | 53.8 mm |
| Outside Diameter | 10 mm |
| Initial Tension | 2.87 lbf |
| Hook Configuration | No Hook |
| Standards | ASTM A228, EN 10270-1, JIS G3522 SWP - A/B |
| Product Type | Extension Spring |
| System of Measurement | Metric |
| Free Length | 35.3 mm |
| Country of Origin (subject to change) | China |
| Package Quantity | 2 |
