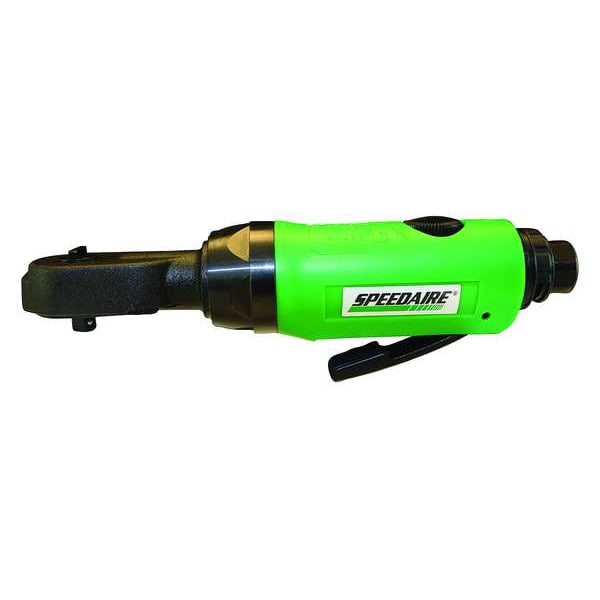

Air Ratchet Wrench, S Drive 1/4 in.
| Item - Air Ratchets | Air Ratchet Wrench |
|---|---|
| Drive Size - Air Tools | 1/4" Square |
| Max. Torque | 40 ft-lb |
| Torque Range | 8 to 35 ft-lb |
| Duty Cycle - Air Tools | General Duty |
| Free Speed | 220 RPM |
| Length | 7-21/32 in |
| Throttle | Lever |
| Required Pressure | 90 psi |
| Square Drive Size | 1/4 in |
| Head Width | 1-7/16 in |
| Reversing | Yes |
| Duty | General |
| Tool Weight | 1.4 lb |
| Variable Speed | No |
| Air Inlet Size - Air Tools | 1/4" NPT |
| Exhaust | Rear |
| Air Inlet | 1/4 in NPT |
| Item | Ratchet |
| Head Height | 1-3/8 in |
| Retainer Type | Ball Detent |
| Handle Material | Aluminum |
| Average CFM @ 15 Second Run Time | 5 |
| Min. Hose | 3/8 in |
| Air Consumption | 5 cfm |
| Power Source | Air Powered |
| Air Pressure | 90 psi |
| Min. Hose Size | 3/8 in |
| Min. Air Pressure | 70 psi |
| Drive Size | 1/4 in |
| Side to Center | 11/16 in |
| Max. Air Pressure | 90 psi |
| Fastening Torque | 40 ft-lb |
| Duty Rating | General Duty |
| Overall Length | 7-5/8 in |
| Exhaust Location | Rear |
| Package Quantity | 1 |
