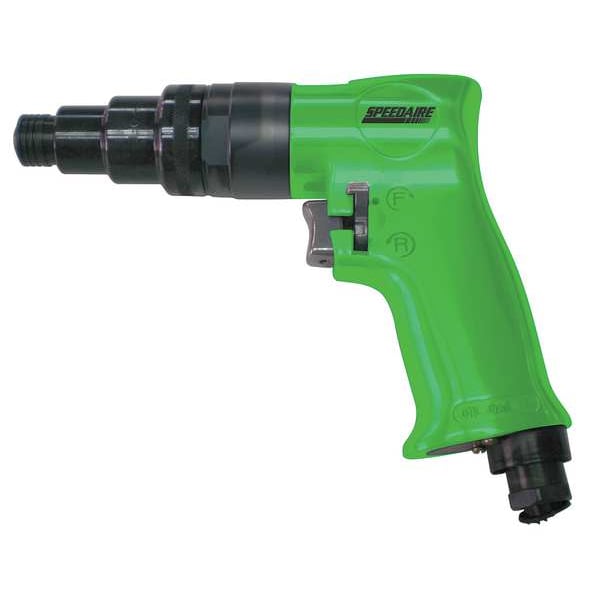

Air Screwdriver, 20 to 115 in.-lb.
| Item - Air Screwdrivers | Air Screwdriver |
|---|---|
| Body Style - Air Tools | Pistol |
| Torque Range Soft Draw | 20 to 115 in-lb |
| Max. Torque | 9.5 ft-lb |
| Clutch Type - Air Screwdriver | Positive |
| Throttle Type - Air Screwdrivers | Trigger |
| Free Speed | 2,200 rpm |
| Duty Cycle - Air Tools | Industrial Duty |
| Air Inlet Size - Air Tools | 1/4 in NPT |
| Min. Hose Size | 3/8 in |
| Item | Screwdriver |
| Throttle Type | Lever |
| Required Pressure | 90 psi |
| Hex Bit | 1/4 in |
| Clutch Type | Positive |
| CFM @ Full Load | 29 |
| Operation | Positive |
| Average CFM @ 15 Second Run Time | 4 |
| Overall Length | 7-3/8 in |
| Air Inlet | 1/4 in NPT |
| Handle Type | Pistol Grip |
| Duty | Industrial |
| Overall Width | 7-5/8 in |
| Overall Height | 7-5/8 in |
| Drive Configuration | Right Angle |
| Torque Range | 1.7 to 9.5 ft-lb |
| Variable Speed | Yes |
| Clutch Setting Location | External |
| Side to Center | 0.4 in |
| Screw Capacity | 1/4 in |
| Vibration Level | 2.5 m/sq sec |
| Exhaust Location | Handle |
| Drive Size | 1/4 in |
| Tool Weight | 2.4 lb |
| Air Pressure | 90 psi |
| Chuck Size | 1/4 in |
| HP | 0.5 hp |
| Reversible | Yes |
| Air Consumption | 4 cfm |
| Duty Rating | Industrial Duty |
| Power Source | Air-Powered |
| Min. Torque | 1.7 ft-lb |
| Noise Level | 82 dB |
| Housing Material | Aluminum |
| Handle Material | Aluminum |
| Explosive Environment Rated | No |
| Bearing Design | Ball |
| Package Quantity | 1 |
