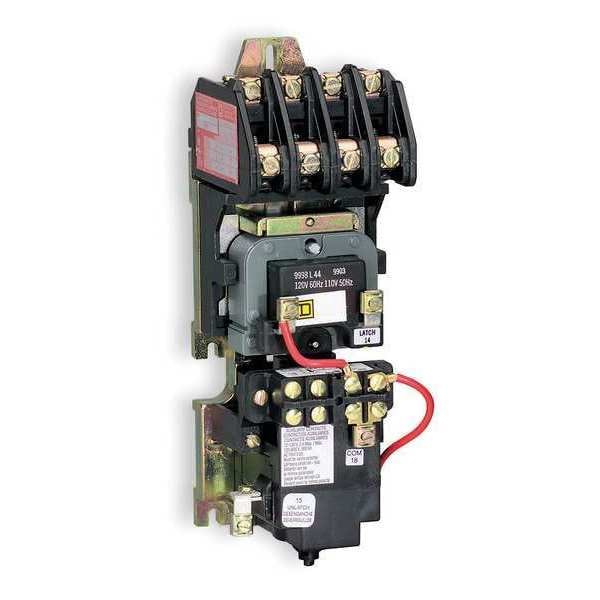

Contacto de iluminación mecánicamente retenido de 120VCA, 10 polos, 30 amperios.
| Item | Lighting Magnetic Contactor |
|---|---|
| Full Load Amps | 30 A |
| Contactor Type | Mechanically Held |
| Number of Poles | 10 |
| Coil Volts | 120V AC |
| Height | 8.81 in |
| Width | 5.63 in |
| Depth | 3-1/4 in |
| Enclosure NEMA Rating | No Enclosure |
| Hz | 50/60 |
| Standards | CSA, REACH, RoHS, UL Listed |
| Current Rating | 20-20 A tungsten; 30-30 A fluorescent |
| Indicator | No |
| Inrush VA | 25-25 VA 60 Hz; 170-170 VA 50 Hz; 180-180 VA 50/60 Hz |
| Features | Halogen free plastic parts product; Mercury Free; PVC Free; Green Premium product; Toxic Heavy Metal Free |
| Electrical Connections | Screw-clamp terminals |
| Control Circuit | Separate control circuit |
| Control Type | No control units |
| Series | 8903 Series Type LX |
| Status Indicator | No Indicator |
| Overall Width | 5.63 in |
| Terminal Connection Type | Screw Clamp Terminals |
| Phase | Three |
| LED Lighting Current Rating | 16 A |
| Reversing Capability | Non-Reversing |
| NEMA Enclosure Material | Not Applicable |
| Full Load Current - Resistive | 30 A |
| Maximum Voltage Rating | 600 V AC |
| Overall Depth | 3.27 in |
| Contactor Style | Mechanically Held Lighting Contactor |
| Overall Height | 8.82 in |
| Tungsten Lighting Current Rating | 20 A |
| Coil Voltage | 110/120V AC |
| Number of Normally Open Main Contacts | 10 |
| Frame Size | L |
| Full Load Current - Inductive | 30 A |
| Includes Shunt | Not Applicable |
| NEMA Enclosure Rating | No Enclosure |
| Frequency | 50/60 Hz |
| Fluorescent Lighting Current Rating | 30 A |
| Package Quantity | 1 |
