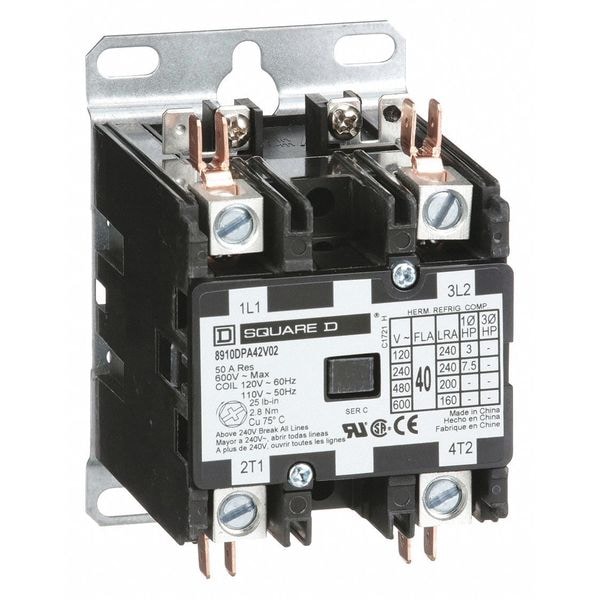

Contactor de propósito definido no reversible de 120VAC, 2 polos 40A, Ancho: 2.5 pulgadas
| Full Load Amps-Inductive | 40 A |
|---|---|
| Item | Definite Purpose Magnetic Contactor |
| Full Load Amps-Resistive | 50 A |
| Action | Non-Reversing |
| Number of Poles | 2 |
| Coil Volts | 120V AC |
| Reversing | No |
| HP @ 1 Phase - 230V | 7.5 |
| HP @ 1 Phase - 120V | 3 hp |
| Height | 4 in |
| HP @ 1 Phase - 240V | 7 1/2 hp |
| Width | 2-1/2 in |
| Depth | 3.12 in |
| Enclosure NEMA Rating | No Enclosure |
| Series | 8910 Series Type DPA |
| Enclosure Type | Open |
| Includes | Quick Connect Terminal |
| Hz | 50/60 |
| Standards | CSA, RoHS, UL Listed |
| Phase | Single |
| Full Load Current - Inductive | 40 A |
| Locked Rotor Load | 160 A @ 575V AC, 200 A @ 460V AC, 240 A @ 277V AC |
| Horsepower @ Three Phase - 600V AC | 50 HP |
| NEMA Enclosure Rating | No Enclosure |
| LED Lighting Current Rating | Not Applicable |
| NEMA Enclosure Material | Not Applicable |
| Number of Normally Open Main Contacts | 2 |
| Includes Shunt | Not Applicable |
| Terminal Connection Type | Terminals, Box Lugs |
| Frame Size | Not Applicable |
| Mounting Hole Distance - Width | 2.03 in |
| Overall Width | 2.37 in |
| Horsepower @ Single Phase - 120V AC | 3 HP |
| Coil Voltage | 110/120V AC |
| Fluorescent Lighting Current Rating | Not Applicable |
| Horsepower @ Single Phase - 240V AC | 7.5 HP |
| Overall Height | 3-3/4 in |
| Tungsten Lighting Current Rating | Not Applicable |
| Frequency | 50/60 Hz |
| Overall Depth | 3 in |
| Contactor Style | HVACR Definite Purpose Contactor |
| Full Load Current - Resistive | 50 A |
| Reversing Capability | Non-Reversing |
| Mounting Hole Distance - Height | 3.28 in |
| Maximum Voltage Rating | 600 V AC |
| Mounting Hole Diameter | 0.2 in |
| Product Certifications | UL Recognized; CSA |
| Control Circuit Voltage | 120 V AC 60 Hz; 110 V AC 50 Hz |
| Locked Rotor Rated Current | 240 A 277 V AC; 200 A 460 V AC; 160 A 575 V AC |
| Product Or Component Type | Definite Purpose Contactor |
| Rated Operational Voltage | 600 V AC |
| Electrical Connection | Box lugs; Quick connect terminals |
| Maximum Horse Power Rating | 3 hp 115 V AC, 1 phase; 7.5 hp 230 V AC, 1 phase |
| Pole Contact Composition | 2 NO |
| Package Quantity | 1 |
