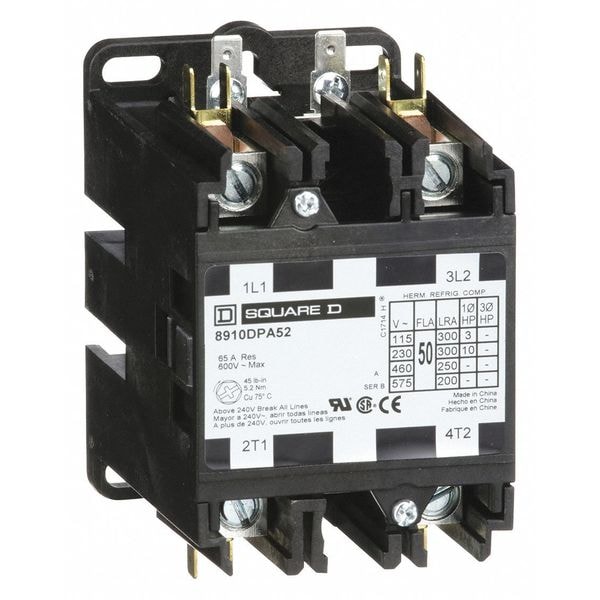

Contacto de propósito definido de 2 polos, 50A, de 120VCA no reversible.
| Full Load Amps-Inductive | 50 A |
|---|---|
| Item | Definite Purpose Magnetic Contactor |
| Full Load Amps-Resistive | 65 A |
| Action | Non-Reversing |
| Number of Poles | 2 |
| Coil Volts | 120V AC |
| Reversing | No |
| HP @ 1 Phase - 230V | 10 |
| HP @ 1 Phase - 120V | 3 hp |
| Height | 4.06 in |
| HP @ 1 Phase - 240V | 10 hp |
| Width | 2.56 in |
| Depth | 3.67 in |
| Enclosure NEMA Rating | No Enclosure |
| Hz | 50/60 |
| Standards | CSA, RoHS, UL Listed |
| Enclosure Type | Open |
| Includes | Quick Connect Terminal |
| Series | 8910 Series Type DPA |
| Phase | Single |
| Horsepower @ Single Phase - 240V AC | 10 HP |
| Horsepower @ Single Phase - 120V AC | 3 HP |
| Fluorescent Lighting Current Rating | Not Applicable |
| Full Load Current - Resistive | 65 A |
| Overall Width | 2.58 in |
| Full Load Current - Inductive | 50 A |
| Tungsten Lighting Current Rating | Not Applicable |
| Overall Depth | 3.67 in |
| Overall Height | 3.72 in |
| Contactor Style | HVACR Definite Purpose Contactor |
| Includes Shunt | Not Applicable |
| Reversing Capability | Non-Reversing |
| Coil Voltage | 110/120V AC |
| NEMA Enclosure Rating | No Enclosure |
| Frame Size | Not Applicable |
| NEMA Enclosure Material | Not Applicable |
| Terminal Connection Type | Terminals, Box Lugs |
| Maximum Voltage Rating | 600 V AC |
| Mounting Hole Distance - Height | 3-1/4 in |
| Locked Rotor Load | 200 A @ 575V AC, 250 A @ 460V AC, 300 A @ 277V AC |
| Number of Normally Open Main Contacts | 2 |
| Mounting Hole Distance - Width | 2.11 in |
| LED Lighting Current Rating | Not Applicable |
| Horsepower @ Three Phase - 600V AC | 50 HP |
| Mounting Hole Diameter | 0.2 in |
| Frequency | 50/60 Hz |
| Package Quantity | 1 |
