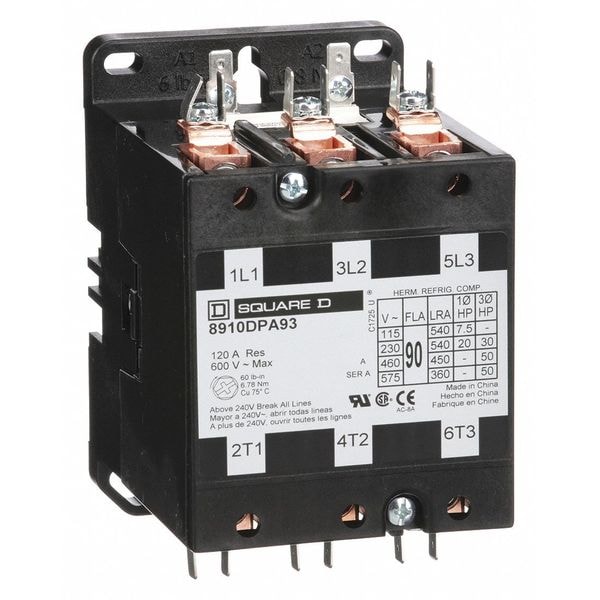

Contactador de Propósito Definido de 120VCA No Reversible, 3 Polos, 90A, Hz: 50/60
| Item | Definite Purpose Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 90 A |
| Action | Non-Reversing |
| Full Load Amps-Resistive | 120 A |
| Number of Poles | 3 |
| Coil Volts | 120V AC |
| Reversing | No |
| HP @ 1 Phase - 120V | 7 1/2 hp |
| HP @ 1 Phase - 230V | 20 |
| HP @ 1 Phase - 240V | 20 hp |
| HP @ 3 Phase - 230V | 30 |
| Height | 5.2 in |
| Width | 3.39 in |
| Depth | 4.37 in |
| HP @ 3 Phase - 575V | 50 hp |
| HP @ 3 Phase - 240V | 30 hp |
| HP @ 3 Phase - 480V | 50 hp |
| Enclosure NEMA Rating | No Enclosure |
| Hz | 50/60 |
| Includes | Quick Connect Terminal |
| Enclosure Type | Open |
| Standards | CSA, RoHS, UL Listed |
| Series | 8910 Series Type DPA |
| Weight | 1.68 kg || 3.7 lb(US) |
| Phase | Three |
| Includes Shunt | Not Applicable |
| Contactor Style | HVACR Definite Purpose Contactor |
| Frame Size | Not Applicable |
| NEMA Enclosure Material | Not Applicable |
| Frequency | 50/60 Hz |
| Number of Normally Open Main Contacts | 3 |
| NEMA Enclosure Rating | No Enclosure |
| Terminal Connection Type | Terminals, Box Lugs |
| Coil Voltage | 110/120V AC |
| Mounting Hole Distance - Height | 4.63 in |
| Locked Rotor Load | 360 A @ 575V AC, 450 A @ 460V AC, 540 A @ 277V AC |
| Mounting Hole Distance - Width | 2.87 in |
| Fluorescent Lighting Current Rating | Not Applicable |
| Overall Depth | 4.67 in |
| Reversing Capability | Non-Reversing |
| Maximum Voltage Rating | 600 V AC |
| Full Load Current - Resistive | 120 A |
| LED Lighting Current Rating | Not Applicable |
| Horsepower @ Three Phase - 600V AC | 50 HP |
| Overall Width | 5 in |
| Tungsten Lighting Current Rating | Not Applicable |
| Horsepower @ Three Phase - 480V AC | 50 HP |
| Mounting Hole Diameter | 0.2 in |
| Overall Height | 5.26 in |
| Horsepower @ Single Phase - 120V AC | 7.5 HP |
| Full Load Current - Inductive | 90 A |
| Horsepower @ Three Phase - 240V AC | 30 HP |
| Horsepower @ Single Phase - 240V AC | 20 HP |
| Product Or Component Type | Definite Purpose Contactor |
| Maximum Horse Power Rating | 7.5 hp 115 V AC, 1 phase; 20 hp 230 V AC, 1 phase; 30 hp 230 V AC, 3 phase; 50 hp 460 V AC, 3 phase; 50 hp 575 V AC, 3 phase |
| Pole Contact Composition | 3 NO |
| Control Circuit Voltage | 120 V AC 60 Hz; 110 V AC 50 Hz |
| Locked Rotor Rated Current | 540 A 277 V AC; 450 A 460 V AC; 360 A 575 V AC |
| Product Certifications | UL Recognized; CSA |
| Rated Operational Voltage | 600 V AC |
| Electrical Connection | Quick connect terminals; Box lugs |
| Package Quantity | 1 |
