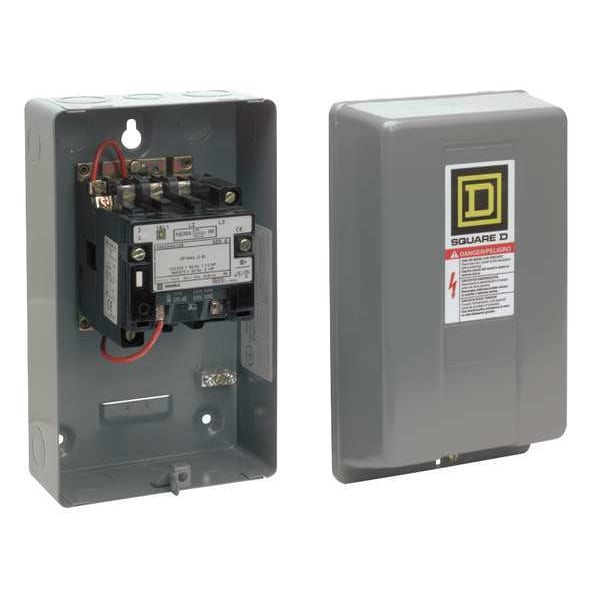

Contactor magnético no reversible de 120VCA, 3 polos, 18 amperios, NEMA 0.
| Item | Magnetic Contactor |
|---|---|
| Full Load Amps | 18 A |
| Action | Non-Reversing |
| Number of Poles | 3 |
| Coil Volts | 120 V AC |
| NEMA Contactor Size | 0 |
| Reversing | No |
| Height | 10 in |
| Width | 5.28 in |
| HP @ 3 Phase - 208V | 3 hp |
| HP @ 3 Phase - 575V | 5 hp |
| HP @ 3 Phase - 240V | 3 hp |
| Depth | 6 in |
| Enclosure NEMA Rating | 1 |
| HP @ 3 Phase - 480V | 5 hp |
| Frame / Series / Class / Code | Class 8502 |
| NEMA Size | 0 |
| Hz | 50/60 |
| Standards | CSA, UL E78351 CCN NLDX |
| Auxiliary Contact Form | Auxiliary Contacts Not Included |
| Series | 8502 |
| [Uc] Control Circuit Voltage | 120 V AC 60 Hz || 110 V AC 50 Hz |
| Nema Degree Of Protection | NEMA 1 painted sheet steel |
| Control Circuit | Separate control circuit |
| Local Signalling | no indicator |
| Rated Power In Hp | 3 HP 200 V AC || 3 HP 230 V AC || 5 HP 460 V AC || 5 HP 575 V AC |
| Contactor Application | non-reversing |
| Line Rated Current | 18 A |
| Poles Description | 3P |
| Control Type | No control units |
| [Ue] Rated Operational Voltage | 600 V AC |
| Product Compatibility | circuit-breaker 70 A maximum, SCCR: 100 kA at 480 V AC || fuse J 60 A maximum, SCCR: 100 kA at 600 V AC || fuse T 60 A maximum, SCCR: 100 kA at 600 V AC || fuse RK1 60 A maximum, SCCR: 100 kA at 600 V AC || fuse RK5 60 A maximum, SCCR: 100 kA at 600 V AC |
| Electrical Connection | Screw Clamp Terminals |
| Product Or Component Type | Contactor |
| Phase | Three |
| Auxiliary Contact Composition | without |
| Product Certifications | UL listed file E78351 CCN NLDX || CSA |
| Overall Depth | 5.28 in |
| Reversing Capability | Non-Reversing |
| Embedded Surge Suppressor | No |
| NEMA Enclosure Rating | 1 |
| Terminal Connection Type | Screw Clamp Terminals |
| Contactor Style | NEMA |
| Horsepower @ Three Phase - 600V AC | 5 HP |
| Maximum Voltage Rating | 600 V AC |
| Full Load Current - Inductive | 18 A |
| Frequency | 50/60 Hz |
| Horsepower @ Three Phase - 208V AC | 3 HP |
| Horsepower @ Three Phase - 240V AC | 3 HP |
| Overall Height | 10 in |
| Coil Voltage | 120V AC |
| Includes Auxiliary Contacts | No |
| NEMA Enclosure Material | Steel |
| Horsepower @ Single Phase - 240V AC | 3 HP |
| Number of Auxillary Contacts | 0 |
| Horsepower @ Three Phase - 480V AC | 5 HP |
| Overall Width | 5.98 in |
| Package Quantity | 1 |
