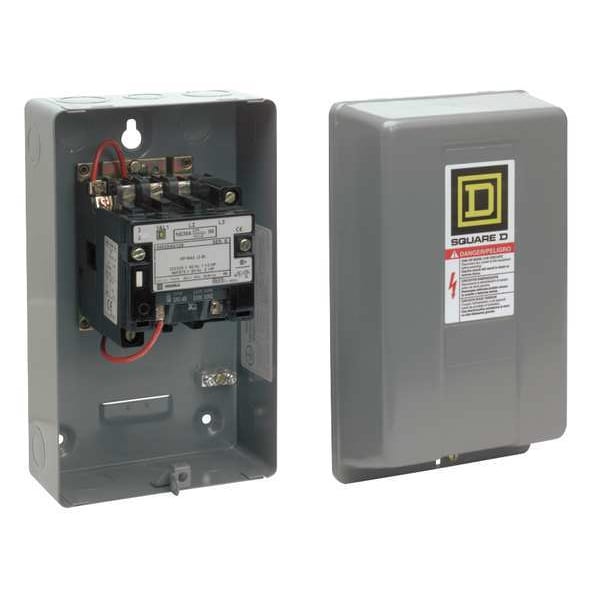

Contactor magnético no reversible de 120VAC, 3 polos, 45 amperios, NEMA 2.
| Item | Magnetic Contactor |
|---|---|
| Action | Non-Reversing |
| Full Load Amps | 45 A |
| Number of Poles | 3 |
| Coil Volts | 120 V AC |
| NEMA Contactor Size | 2 |
| Reversing | No |
| Height | 12.69 in |
| Width | 6.03 in |
| HP @ 3 Phase - 208V | 10 hp |
| HP @ 3 Phase - 240V | 15 hp |
| Depth | 7.81 in |
| HP @ 3 Phase - 575V | 25 hp |
| Enclosure NEMA Rating | 1 |
| HP @ 3 Phase - 480V | 25 hp |
| Standards | CSA, UL E78351 CCN NLDX |
| Hz | 50/60 |
| Frame / Series / Class / Code | Class 8502 |
| NEMA Size | 2 |
| Series | 8502 |
| Auxiliary Contact Form | Auxiliary Contacts Not Included |
| Product Or Component Type | Contactor |
| Rated Power In Hp | 10 HP 200 V AC || 15 HP 230 V AC || 25 HP 460 V AC || 25 HP 575 V AC |
| Product Compatibility | circuit-breaker 100 A maximum, SCCR: 100 kA at 480 V AC || fuse J 100 A maximum, SCCR: 100 kA at 600 V AC || fuse T 100 A maximum, SCCR: 100 kA at 600 V AC || fuse RK1 100 A maximum, SCCR: 100 kA at 600 V AC || fuse RK5 100 A maximum, SCCR: 100 kA at 600 V AC |
| Poles Description | 3P |
| Contactor Application | non-reversing |
| Phase | Three |
| Nema Degree Of Protection | NEMA 1 painted sheet steel |
| Control Type | No control units |
| Auxiliary Contact Composition | without |
| [Uc] Control Circuit Voltage | 120 V AC 60 Hz || 110 V AC 50 Hz |
| [Ue] Rated Operational Voltage | 600 V AC |
| Local Signalling | no indicator |
| Electrical Connection | Screw Clamp Terminals |
| Control Circuit | Separate control circuit |
| Line Rated Current | 45 A |
| Product Certifications | UL listed file E78351 CCN NLDX || CSA |
| Frequency | 50/60 Hz |
| NEMA Enclosure Material | Steel |
| Horsepower @ Three Phase - 600V AC | 25 HP |
| Horsepower @ Three Phase - 480V AC | 25 HP |
| Overall Height | 12.68 in |
| Horsepower @ Three Phase - 240V AC | 15 HP |
| Reversing Capability | Non-Reversing |
| Full Load Current - Inductive | 45 A |
| Horsepower @ Single Phase - 240V AC | 15 HP |
| NEMA Enclosure Rating | 1 |
| Includes Auxiliary Contacts | No |
| Maximum Voltage Rating | 600 V AC |
| Coil Voltage | 120V AC |
| Horsepower @ Three Phase - 208V AC | 10 HP |
| Embedded Surge Suppressor | No |
| Overall Width | 7.8 in |
| Contactor Style | NEMA |
| Number of Auxillary Contacts | 0 |
| Terminal Connection Type | Screw Clamp Terminals |
| Overall Depth | 6.02 in |
| Certifications | UL listed file E78351 CCN NLDX; CSA |
| Horsepower Rating | 10 HP 200 V AC; 15 HP 230 V AC; 25 HP 460 V AC; 25 HP 575 V AC |
| Short Circuit Current Rating | Circuit-breaker 100 A maximum, SCCR: 100 kA at 480 V AC; Fuse J 100 A maximum, SCCR: 100 kA at 600 V AC; Fuse T 100 A maximum, SCCR: 100 kA at 600 V AC; Fuse RK1 100 A maximum, SCCR: 100 kA at 600 V AC; Fuse RK5 100 A maximum, SCCR: 100 kA at 600 V AC |
| Package Quantity | 1 |
