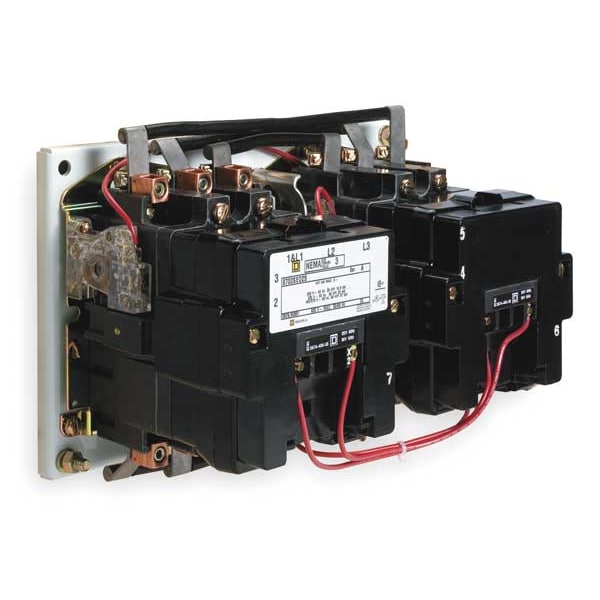

Contacto magnético de inversión de 120VCA, 3 polos, 90A, NEMA 3.
| Item | Magnetic Contactor |
|---|---|
| Full Load Amps | 90 A |
| Action | Reversing |
| Number of Poles | 3 |
| Coil Volts | 120 V AC |
| NEMA Contactor Size | 3 |
| Reversing | Yes |
| Height | 7.97 in |
| HP @ 3 Phase - 208V | 25 hp |
| Width | 12.72 in |
| Depth | 7 in |
| HP @ 3 Phase - 240V | 30 hp |
| HP @ 3 Phase - 575V | 50 hp |
| HP @ 3 Phase - 480V | 50 hp |
| Enclosure NEMA Rating | No Enclosure |
| Standards | CSA, UL Listed |
| Frame / Series / Class / Code | Class 8702 |
| NEMA Size | 3 |
| Hz | 50/60 |
| Auxiliary Contact Form | Auxiliary Contacts Not Included |
| Series | 8702 |
| Condition Of Use | horizontal |
| [Ue] Rated Operational Voltage | 600 V AC |
| [Uc] Control Circuit Voltage | 110 V AC 50 Hz || 120 V AC 60 Hz |
| Local Signalling | no indicator |
| Control Type | No control units |
| Wiring Mode | 3 wires |
| Nema Degree Of Protection | not rated (open device) |
| Electrical Connection | Screw Clamp Terminals |
| Contactor Application | reversing |
| Control Circuit | Separate control circuit |
| Phase | Three |
| Product Certifications | UL Listed || CSA |
| Rated Power In Hp | 25 HP 200 V AC || 30 HP 230 V AC || 50 HP 460 V AC || 50 HP 575 V AC |
| Line Rated Current | 90 A |
| Poles Description | 3P |
| Product Or Component Type | Contactor |
| Overall Depth | 7 in |
| Horsepower @ Three Phase - 480V AC | 50 HP |
| NEMA Enclosure Rating | No Enclosure |
| Overall Width | 12.72 in |
| Horsepower @ Three Phase - 240V AC | 30 HP |
| Horsepower @ Single Phase - 240V AC | 30 HP |
| Includes Auxiliary Contacts | No |
| Mounting Postion | Horizontal |
| Horsepower @ Three Phase - 208V AC | 25 HP |
| Reversing Capability | Reversing |
| Coil Voltage | 120V AC |
| Frequency | 50/60 Hz |
| Horsepower @ Three Phase - 600V AC | 50 HP |
| Overall Height | 7.97 in |
| Embedded Surge Suppressor | No |
| Maximum Voltage Rating | 600 V AC |
| Contactor Style | NEMA |
| NEMA Enclosure Material | Not Applicable |
| Terminal Connection Type | Screw Clamp Terminals |
| Full Load Current - Inductive | 90 A |
| Number of Auxillary Contacts | 0 |
| Package Quantity | 1 |
