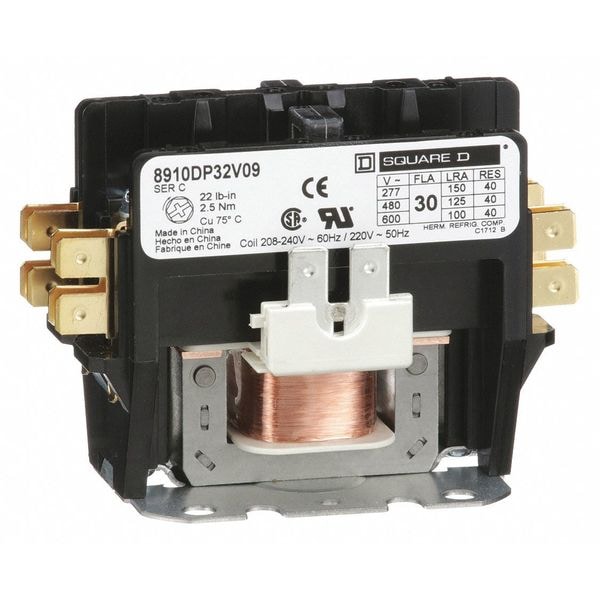

Contactor de propósito definido no reversibles de 208/240VAC, 2 polos, 30A, Hz: 50/60.
| Item | Definite Purpose Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 30 A |
| Full Load Amps-Resistive | 40 A |
| Action | Non-Reversing |
| Number of Poles | 2 |
| Coil Volts | 208/240V AC |
| Reversing | No |
| HP @ 1 Phase - 120V | 2 hp |
| HP @ 1 Phase - 230V | 5 |
| Height | 3.29 in |
| HP @ 1 Phase - 240V | 5 hp |
| Width | 2.16 in |
| Depth | 2.22 in |
| Enclosure NEMA Rating | No Enclosure |
| Enclosure Type | Open |
| Standards | CSA, RoHS, UL Listed |
| Includes | Quick Connect Terminal |
| Hz | 50/60 |
| Series | 8910 Series Type DP |
| Phase | Single |
| Terminal Connection Type | Terminals |
| Mounting Hole Distance - Height | 1.63 in |
| Horsepower @ Single Phase - 240V AC | 5 HP |
| Maximum Voltage Rating | 600 V AC |
| Mounting Hole Distance - Width | 1.63 in |
| LED Lighting Current Rating | Not Applicable |
| Fluorescent Lighting Current Rating | Not Applicable |
| Full Load Current - Resistive | 40 A |
| NEMA Enclosure Material | Not Applicable |
| Horsepower @ Single Phase - 120V AC | 2 HP |
| Includes Shunt | Not Applicable |
| Overall Depth | 2.45 in |
| Contactor Style | HVACR Definite Purpose Contactor |
| Reversing Capability | Non-Reversing |
| Coil Voltage | 220/208-240V AC |
| Full Load Current - Inductive | 30 A |
| Horsepower @ Three Phase - 600V AC | 50 HP |
| Frame Size | Not Applicable |
| NEMA Enclosure Rating | No Enclosure |
| Overall Width | 2 in |
| Mounting Hole Diameter | 0.2 in |
| Overall Height | 3.32 in |
| Locked Rotor Load | 100 A @ 575V AC, 125 A @ 460V AC, 150 A @ 277V AC |
| Number of Normally Open Main Contacts | 2 |
| Tungsten Lighting Current Rating | Not Applicable |
| Frequency | 50/60 Hz |
| Package Quantity | 1 |
